NO.E164730

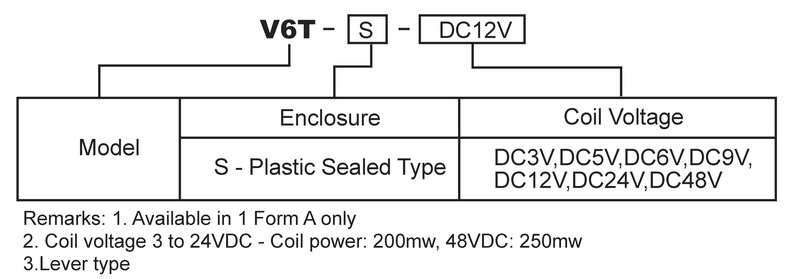

This is our low profile and flat type power relay V6T. It is available in 1 Form A contact only. It has high coil sensitivity. The nominal coil power is 200mW, but when coil voltage comes to 48VDC, the coil power is 250mW. It has Max. 16A switching capacity. V6T is very special because of its lever type, so it can operate manually. It has passed UL E164730 safety standards.
| Contact Data | |
| Contact Form | 1A |
| Contact Rating | Resistive:16A 250VAC 16A 30VDC |
| Max.Switching Voltage | 250VAC/30VDC |
| Max.Switching Current | 16A |
| Max.Switching Power | 4,000VAC,480W |
| Min.Switching Load | 5VDC,100mA |
| Coil Data | |
| Coil Voltage | 3～48VDC |
| Coil Power | 200mW |
| General Data | ||
| Dielectric Strength | Open Contacts | 750VAC,1min |
| Coil and Contacts | 2,500VAC,1min | |
| Electrical Life(ops.) | 50,000 | |
| Operating Temperature | -40℃ to +85℃ | |
| Terminal Type | PCB | |
| Packaging | |
| Packing Method | 25pcs/Tube |
| Qty/Ctn (Pcs) | 1000/Carton |
| Carton Size L×W×H(mm) | 647×259×128 |
| Approx N.W. | 8.6 |
| Approx G.W. | 10.0 |
Applications: The sound field.
