NO.1369391
NO.E164730

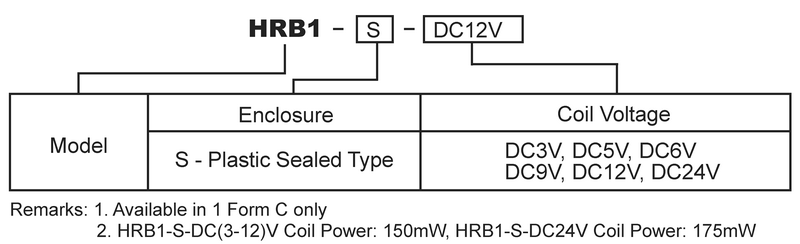

The product HRB1 is our HKE microminiature signal relay. It has light weight only 2.2g. HRB1 is available in 1 Form C only. It has AuAg overlay contact material and the Max. Switching current is 2A. The coil power of HRB1-S-DC (3~12V) is 150mW, the coil power of HRB1-S-DC24V is 175mW. HRB1 also has UL E164730 and CSA 1369391 safety approval.
| Contact Data | |
| Contact Form | 1C |
| Contact Rating | 1A 125VAC/24VDC 2A 125VAC/24VDC |
| Max.Switching Voltage | 125VAC/30VDC |
| Max.Switching Current | 2A |
| Max.Switching Power | 250VA,48W |
| Min.Switching Load | 5VDC,10mA |
| Coil Data | |
| Coil Voltage | 3～24VDC |
| Coil Power | 150mW |
| General Data | ||
| Dielectric Strength | Open Contacts | 500VAC,1min |
| Coil and Contacts | 1,000VAC,1min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -40℃ to +70℃ | |
| Terminal Type | PCB | |
| Packaging | |
| Packing Method | 25pcs/Tube |
| Qty/Ctn (Pcs) | 2000/Carton |
| Carton Size L×W×H(mm) | 390×301×148 |
| Approx N.W. | 5.5 |
| Approx G.W. | 6.7 |
Applications: The sound field.
