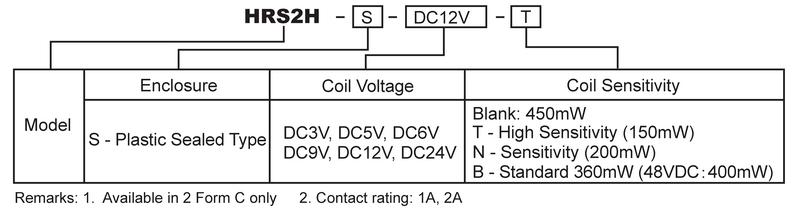

This product HRS2H is our microminiature signal relay. As early as in 1990, we developed and produced program-controlled switches with HRS2 (JRC-19F4078) small communication relay, which is the prototype of HRS2H. It is available in 2 Form C contact only. It has two kinds of contact rating: 1A and 2A. It has three kinds of coil sensitivity: high sensitivity (150mW), sensitivity (200mW), standard (360mW) (48VDC: 400mW). HRS2H has UL E164730, TUV 50097843, CQC 13002092811 safety standards.
| Contact Data | |
| Contact Form | 2C |
| Contact Rating | 1A 120VAC/24VDC 2A 120VAC/24VDC |
| Max.Switching Voltage | 125VAC/30VDC |
| Max.Switching Current | 2A |
| Max.Switching Power | 240VA,48W |
| Min.Switching Load | 5VDC,10mA |
| Coil Data | |
| Coil Voltage | 3～24VDC |
| Coil Power | 150mW 200mW 360mW 450mW |
| General Data | ||
| Dielectric Strength | Open Contacts | 500VAC,1min |
| Coil and Contacts | 1,000VAC,1min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -25℃ to +70℃ | |
| Terminal Type | PCB | |
| Packaging | |
| Packing Method | 25pcs/Tube |
| Qty/Ctn (Pcs) | 2000/Carton |
| Carton Size L×W×H(mm) | 584×310×134 |
| Approx N.W. | 11 |
| Approx G.W. | 12.8 |
Applications: The sound field.
Frequently asked questions:
Q1. How about your company? Do you have factories?
A: Our HKE company is one of the biggest relay manufacturers in China. Our products cover almost all the automotive market in China and have a good reputation. Of course we have our own factories, so our products come directly from the production line.
Q2. Can you send samples?
A: Yes, we can send you samples. More requirements you can contact us by email.
Q3. How long is your lead time?
A: Because of influence of COVID 19, generally the time is over 30 days. The demand for some popular products exceeds the supply, so the lead time maybe longer. But we will arrange our production as soon as possible according to your order.
Q4. How about your after-sales service?
A: We provide perfect after-sales service. If you have any problems of products, you can consult us by email. We will give you best solutions as soon as possible.
