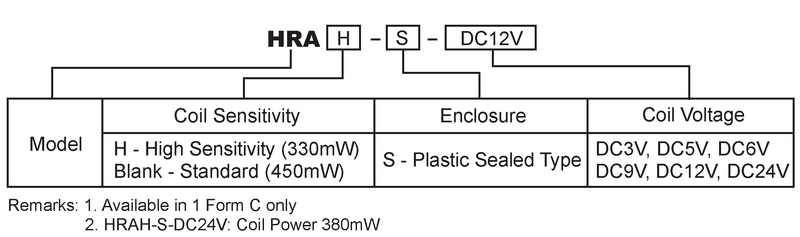

The product HRA is our HKE’s well-known microminiature signal relay. It has the advantages of fast action, stable operation, long service life, and small size. HRA is available in 1 Form C contact only. HRA has two size of coil sensitivity: High sensitivity (330mW) and Standard (450mW). It’s worth noting that coil power of HRAH-S-DC24V is 380mW. Also, this product has UL E164730 and CSA 1063017 safety approval.
| Contact Data | |
| Contact Form | 1C |
| Contact Rating | 1A 120VAC/24VDC |
| Max.Switching Voltage | 120VAC/30VDC |
| Max.Switching Current | 2A |
| Max.Switching Power | 120VA,30W |
| Min.Switching Load | 5VDC,10mA |
| Coil Data | |
| Coil Voltage | 3～24VDC |
| Coil Power | 330mW 450mW |
| General Data | ||
| Dielectric Strength | Open Contacts | 500VAC,1min |
| Coil and Contacts | 500VAC,1min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -25℃ to +70℃ | |
| Terminal Type | PCB | |
| Packaging | |
| Packing Method | 25pcs/Tube |
| Qty/Ctn (Pcs) | 2000/Carton |
| Carton Size L×W×H(mm) | 332×302×148 |
| Approx N.W. | 2.9 |
| Approx G.W. | 4.8 |
Applications: The sound field.
