Products

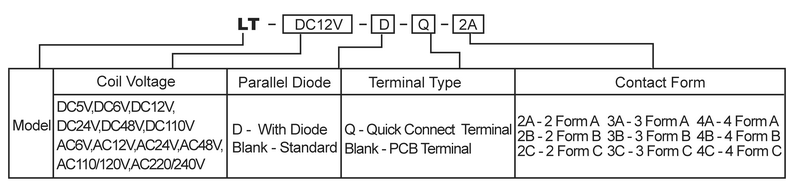

The product LT is our power relay. It has AC or DC coil to choose from. It is available in various types mounting terminals. Like the product LH, it also can have parallel diode and transparent cover. There are nine kinds of contact forms, they are 2A, 2B, 2C, 3A, 3B, 3C, 4A, 4B, 4C.
| Contact Data | |
| Contact Form | 2A, 2B, 2C 3A, 3B, 3C 4A, 4B, 4C |
| Contact Rating | 2 Form,3 Form: 5A 220VAC/28VDC(Standard) 7A 220VAC/28VDC(High capacity)4 Form: 3A 220VAC/28VDC(Standard) 5A 220VAC/28VDC(High capacity) |
| Max.Switching Voltage | 250VAC/30VDC |
| Max.Switching Current | 2 Form, 3 Form: 3A, 7A 4 Form: 3A, 5A |
| Max.Switching Power | 2 Form, 3 Form: 5A: 1100VA/140W 7A:1540VA/196W |
| Min.Switching Load | – |
| Coil Data | |
| Coil Voltage | 5～110VDC 6～240VAC |
| Coil Power | DC：900mW,1100mW AC：1200mVA |
| General Data | ||
| Dielectric Strength | Open Contacts | 1,000VAC,1min |
| Coil and Contacts | 1,500VAC,1min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -40℃ to +70℃ | |
| Terminal Type | PCB Quick connect |
|
Applications: It is widely used in flash light, control instruments, window motor control, low temperature start, electronic positioning instruments, center door lock, motor control, etc.
Frequently asked questions:
Q1. How about your company? Do you have factories?
A: Our HKE company is one of the biggest relay manufacturers in China. Our products cover almost all the automotive market in China and have a good reputation. Of course we have our own factories, so our products come directly from the production line.
Q2. Can you send samples?
A: Yes, we can send you samples. More requirements you can contact us by email.
Q3. How long is your lead time?
A: Because of influence of COVID 19, generally the time is over 30 days. The demand for some popular products exceeds the supply, so the lead time maybe longer. But we will arrange our production as soon as possible according to your order.
Q4. How about your after-sales service?
A: We provide perfect after-sales service. If you have any problems of products, you can consult us by email. We will give you best solutions as soon as possible.
