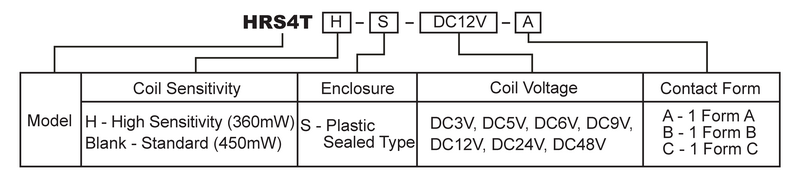

This is our miniature power relay HRS4T. It has two kinds of coil sensitivity: high sensitivity (360mW) and standard (450mW). There are three kinds of contact form: 1 Form A, 1 Form B, 1 Form C. It has UL Class insulation. HRS4T has passed CQC 08002027614, UL E164730, TUV 50116136, TUV 50116136 (EN 60730-1) safety standards.
| Contact Data | |
| Contact Form | 1A,1B,1C |
| Contact Rating | 10A 250VAC/24VDC |
| Max.Switching Voltage | 250VAC/28VDC |
| Max.Switching Current | 15A |
| Max.Switching Power | 2,500VA,280W |
| Min.Switching Load | 5VDC,100mA |
| Coil Data | |
| Coil Voltage | 3～48VDC |
| Coil Power | 360mW 450mW |
| General Data | ||
| Dielectric Strength | Open Contacts | 1,000VAC,1min |
| Coil and Contacts | 1,500VAC,1min | |
| Electrical Life(ops.) | 100,000 operations (NO contact ) | |
| Operating Temperature | -40℃ to +85℃ | |
| Terminal Type | PCB | |
| Packaging | |
| Packing Method | 25pcs/Tube |
| Qty/Ctn (Pcs) | 1000/Carton |
| Carton Size L×W×H(mm) | 476×274×182 |
| Approx N.W. | 10.8 |
| Approx G.W. | 12.3 |
Applications: The sound field.
Frequently asked questions:
Q1. How about your company? Do you have factories?
A: Our HKE company is one of the biggest relay manufacturers in China. Our products cover almost all the automotive market in China and have a good reputation. Of course we have our own factories, so our products come directly from the production line.
Q2. Can you send samples?
A: Yes, we can send you samples. More requirements you can contact us by email.
Q3. How long is your lead time?
A: Because of influence of COVID 19, generally the time is over 30 days. The demand for some popular products exceeds the supply, so the lead time maybe longer. But we will arrange our production as soon as possible according to your order.
Q4. How about your after-sales service?
A: We provide perfect after-sales service. If you have any problems of products, you can consult us by email. We will give you best solutions as soon as possible.
