Product Model: HRS4N
Max.20A switching capability
High temperature load: 17A 277VAC at 105℃

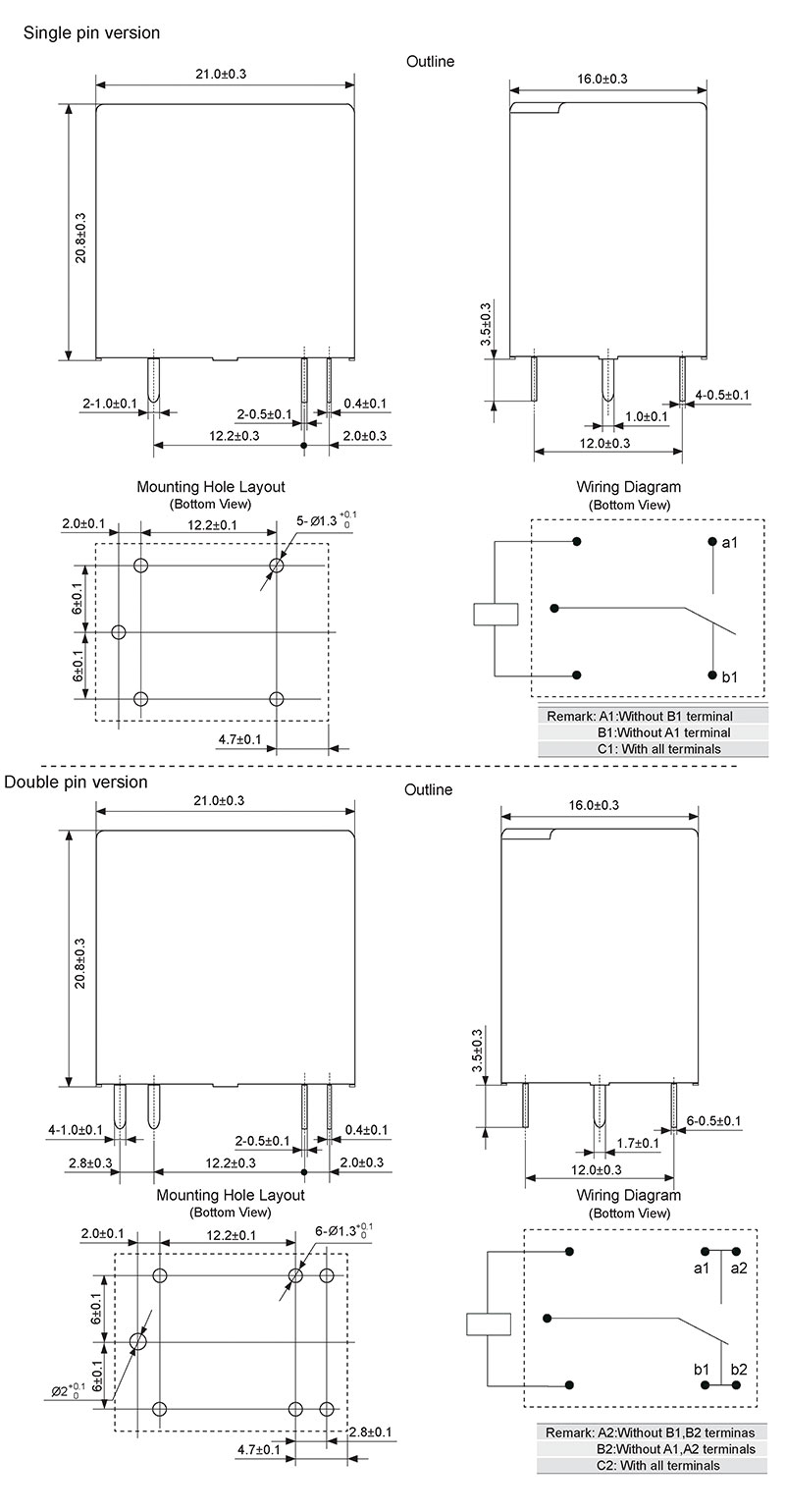

Available for single pin and double pins terminal
Compliance to standard EN 60335-1
Compliance to RoHS Directive
UL Insulation system: F Class
NO.CQC16002155729
NO.50367249

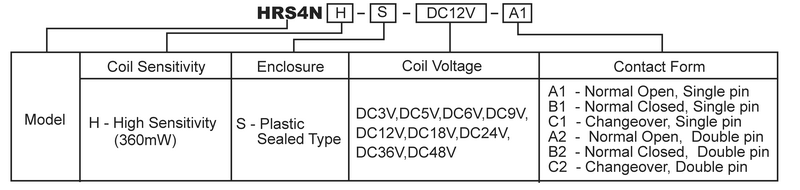

This is our power relay HRS4N. It compliance to RoHS Directive and standard EN 60335-1. It is available for single pin and double pins terminal, so there are various contact form, they are A1, B1, C1, A2, B2, C2. It has 360mW high sensitivity coil power. HRS4N owns F Class UL insulation. It has passed CQC 16002155729, TUV 50367249 safety standards.
| Contact Data | |
| Contact Form | 1A,1B,1C |
| Contact Rating | A: 20A 125VAC 17A 277VAC TV-8 125VAC C: NO: 17A 277VACNC: 7A 277VAC |
| Max.Switching Voltage | 400VAC/28VDC |
| Max.Switching Current | 20A(A) 17A(C) |
| Max.Switching Power | 4,700VA |
| Min.Switching Load | 5VDC,100mA |
| Coil Data | |
| Coil Voltage | 3～48VDC |
| Coil Power | 360mW |
| General Data | ||
| Dielectric Strength | Open Contacts | 1000VAC,50/60Hz,1 min |
| Coil and Contacts | 2500VAC,50/60Hz,1 min | |
| Electrical Life(ops.) | A: 100,000 operations C: 50,000 operations |
|
| Operating Temperature | -40℃ to +85℃(Single pin) -40℃ to +105℃(Double pin) |
|
| Terminal Type | PCB | |
| Packaging | |
| Packing Method | 25pcs/Tube |
| Qty/Ctn (Pcs) | 1000/Carton |
| Carton Size L×W×H(mm) | 500×360×206 |
| Approx N.W. | 12.5 |
| Approx G.W. | 15.3 |
Applications: The sound field.
Frequently asked questions:
Q1. How about your company? Do you have factories?
A: Our HKE company is one of the biggest relay manufacturers in China. Our products cover almost all the automotive market in China and have a good reputation. Of course we have our own factories, so our products come directly from the production line.
Q2. Can you send samples?
A: Yes, we can send you samples. More requirements you can contact us by email.
Q3. How long is your lead time?
A: Because of influence of COVID 19, generally the time is over 30 days. The demand for some popular products exceeds the supply, so the lead time maybe longer. But we will arrange our production as soon as possible according to your order.
Q4. How about your after-sales service?
A: We provide perfect after-sales service. If you have any problems of products, you can consult us by email. We will give you best solutions as soon as possible.
