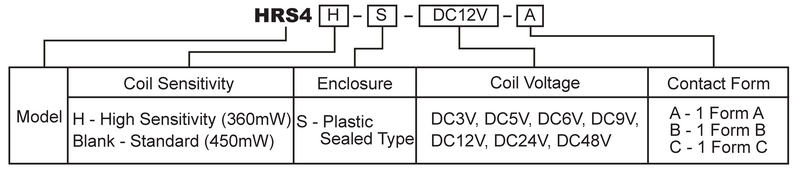

This product is our HKE miniature power relay HRS4. It has UL Class F insulation and TV-5 rating. HRS4 has three kinds of contact form: 1 Form A, 1 Form B, 1 Form C. It has two kinds of coil sensitivity: high sensitivity (360mW) and standard (450mW). HRS4 has passed many safety standards: CQC 08002027614, TUV 50116136, UL E164730, UL E322395, CSA 1063016, Explosion-proof Certificate CNEx16.3131U.
| Contact Data | |

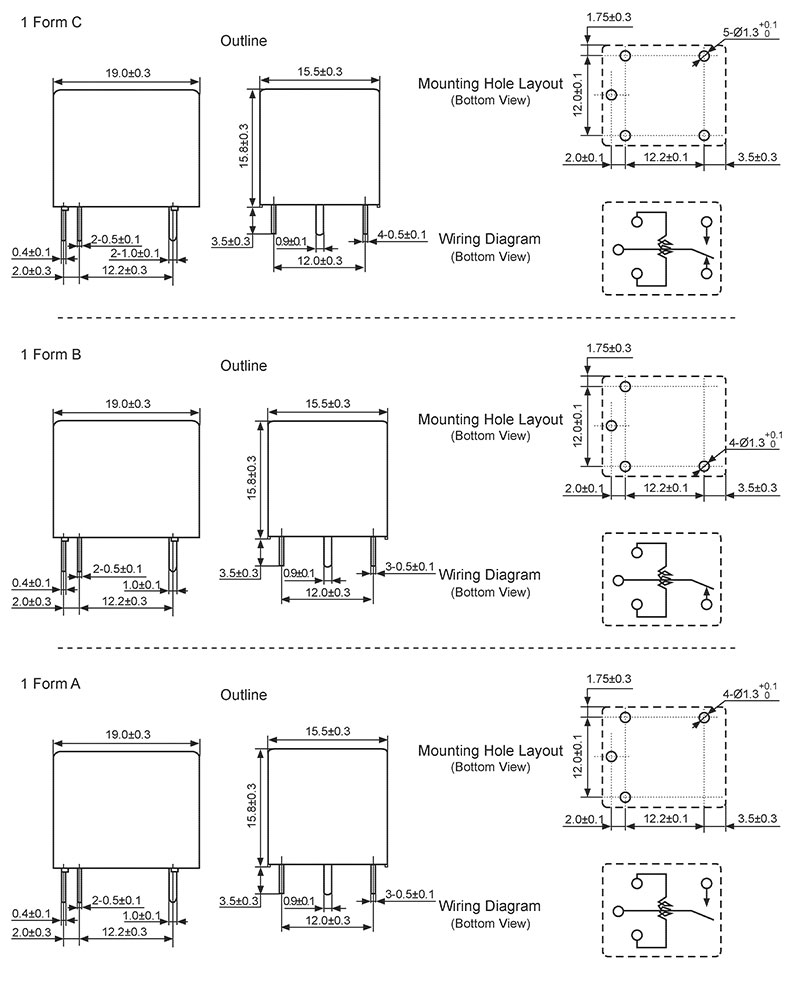

| Contact Form | 1A, 1B, 1C |
| Contact Rating | A:15A 125VAC, 10A 250VAC C:NO: 10A 250VAC/24VDC NC: |
| Max.Switching Voltage | 250VAC/28VDC |
| Max.Switching Current | 15A |
| Max.Switching Power | 2,500VA, 280W |
| Min.Switching Load | 5VDC, 100mA |
| Coil Data | |
| Coil Voltage | 3～48VDC |
| Coil Power | 360mW 450mW |
| General Data | ||
| Dielectric Strength | Open Contacts | 750VAC, 1 min |
| Coil and Contacts | 1,500VAC, 1min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -40℃ to +85℃ | |
| Terminal Type | PCB | |
| Packaging | |
| Packing Method | 25pcs/Tube 50pcs/Box(plastic) |
| Qty/Ctn (Pcs) | 1000/Carton |
| Carton Size L×W×H(mm) | 456×266×161(Tube) 323×221×280(Box) |
| Approx N.W. | 8.2 |
| Approx G.W. | 10.0(Tube) 9.4(Box) |
Applications: The sound field.
Frequently asked questions:
Q1. How about your company? Do you have factories?
A: Our HKE company is one of the biggest relay manufacturers in China. Our products cover almost all the automotive market in China and have a good reputation. Of course we have our own factories, so our products come directly from the production line.
Q2. Can you send samples?
A: Yes, we can send you samples. More requirements you can contact us by email.
Q3. How long is your lead time?
A: Because of influence of COVID 19, generally the time is over 30 days. The demand for some popular products exceeds the supply, so the lead time maybe longer. But we will arrange our production as soon as possible according to your order.
Q4. How about your after-sales service?
A: We provide perfect after-sales service. If you have any problems of products, you can consult us by email. We will give you best solutions as soon as possible.
