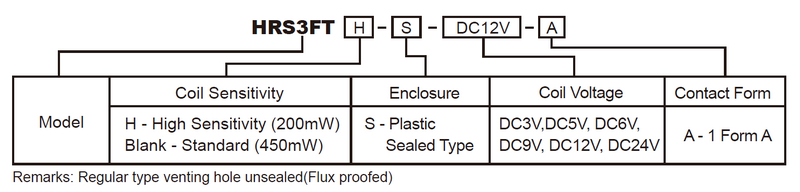

Product Model: HRS3FT
Microminiature relay

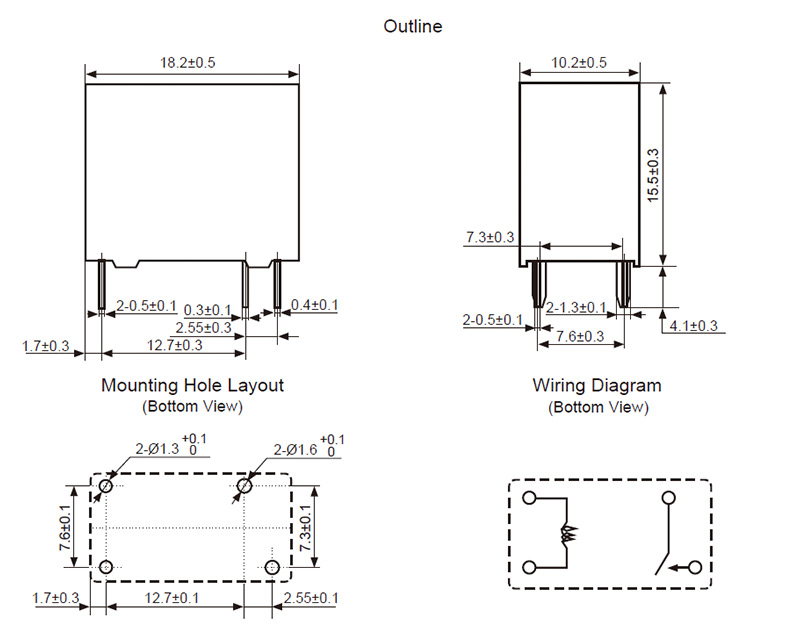

Dimensions: 18.2×10.2×15.5(mm)
16A switching capacity
Contact: 1 Form A
Reinforced insulation between coil and contact
Dielectric strength of 4000V between coil and contacts
TV-5 rating
CQC12002076143
NO.50223752
NO.E164730
This is our newly developed microminiature power relay in recent years—HRS3FT. It has TV-5 rating and dielectric strength of 4000V between coil and contacts. The contact is 1 Form A. It has approximately 6.0g weight and 16A switching capacity. The safety approvals are UL E164730, TUV 50223752 and CQC 12002076143.
| Contact Data | |
| Contact Form | 1A |
| Contact Rating | 16A 250VAC |
| Max.Switching Voltage | 250VAC/30VDC |
| Max.Switching Current | 16A |
| Max.Switching Power | 4000VAC,480W |
| Min.Switching Load | 5VDC,100mA |
| Coil Data | |
| Coil Voltage | DC3V~DC24V |
| Coil Power | H:200mW Blank:450mW |
| General Data | ||
| Dielectric Strength | Open Contacts | 1000VAC |
| Coil and Contacts | 4000VAC | |
| Electrical Life(ops.) | 50,000 ops | |
| Operating Temperature | 85℃ | |
| Terminal Type | PCB | |
| Packaging | |
| Packing Method | 100pcs/Box(paper) |
| Qty/Ctn (Pcs) | 1000/Carton |
| Carton Size L×W×H(mm) | 284×250×180 |
| Approx N.W. | 5.9 |
| Approx G.W. | 6.9 |
Applications: The sound field.
Frequently asked questions:
Q1. How about your company? Do you have factories?
A: Our HKE company is one of the biggest relay manufacturers in China. Our products cover almost all the automotive market in China and have a good reputation. Of course we have our own factories, so our products come directly from the production line.
Q2. Can you send samples?
A: Yes, we can send you samples. More requirements you can contact us by email.
Q3. How long is your lead time?
A: Because of influence of COVID 19, generally the time is over 30 days. The demand for some popular products exceeds the supply, so the lead time maybe longer. But we will arrange our production as soon as possible according to your order.
Q4. How about your after-sales service?
A: We provide perfect after-sales service. If you have any problems of products, you can consult us by email. We will give you best solutions as soon as possible.
