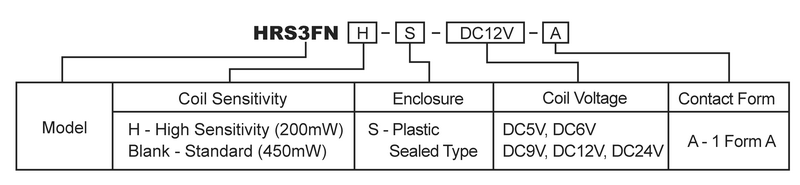

This product is our microminiature power relay HRS3FN. It has two kinds of coil sensitivity: high sensitivity (200mW) and standard (450mW). It owns 10A switching capacity and 1 Form A contact. Also it is packed by plastic sealed type enclosure. HRS3FN has TUV 50223752, CQC 12002076143, UL E164730 and Explosion-proof Certificate CNEx16.3129U safety standards. It has reinforced insulation between coil and contact.
| Contact Data | |
| Contact Form | 1A |
| Contact Rating | Resistive: 10A 250VAC Horsepower: 1/3HP 240VAC(450mW)1/4HP 240VAC(450mW) |
| Max.Switching Voltage | 277VAC/30VDC |
| Max.Switching Current | 10A |
| Max.Switching Power | 2,500VA,300W |
| Min.Switching Load | 5VDC,100mA |
| Coil Data | |
| Coil Voltage | 5～24VDC |
| Coil Power | 200mW 450mW |
| General Data | ||
| Dielectric Strength | Open Contacts | 1,000VAC,1min |
| Coil and Contacts | 4,000VAC,1min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -40℃ to +85℃ | |
| Terminal Type | PCB | |
| Packaging | |
| Packing Method | 100pcs/Box(paper) |
| Qty/Ctn (Pcs) | 1000/Carton |
| Carton Size L×W×H(mm) | 284×250×180 |
| Approx N.W. | 5.9 |
| Approx G.W. | 6.9 |
Applications: The sound field.
Frequently asked questions:
Q1. How about your company? Do you have factories?
A: Our HKE company is one of the biggest relay manufacturers in China. Our products cover almost all the automotive market in China and have a good reputation. Of course we have our own factories, so our products come directly from the production line.
Q2. Can you send samples?
A: Yes, we can send you samples. More requirements you can contact us by email.
Q3. How long is your lead time?
A: Because of influence of COVID 19, generally the time is over 30 days. The demand for some popular products exceeds the supply, so the lead time maybe longer. But we will arrange our production as soon as possible according to your order.
Q4. How about your after-sales service?
A: We provide perfect after-sales service. If you have any problems of products, you can consult us by email. We will give you best solutions as soon as possible.
