Product Model: HRM4
Small size
Sealed and unsealed versions

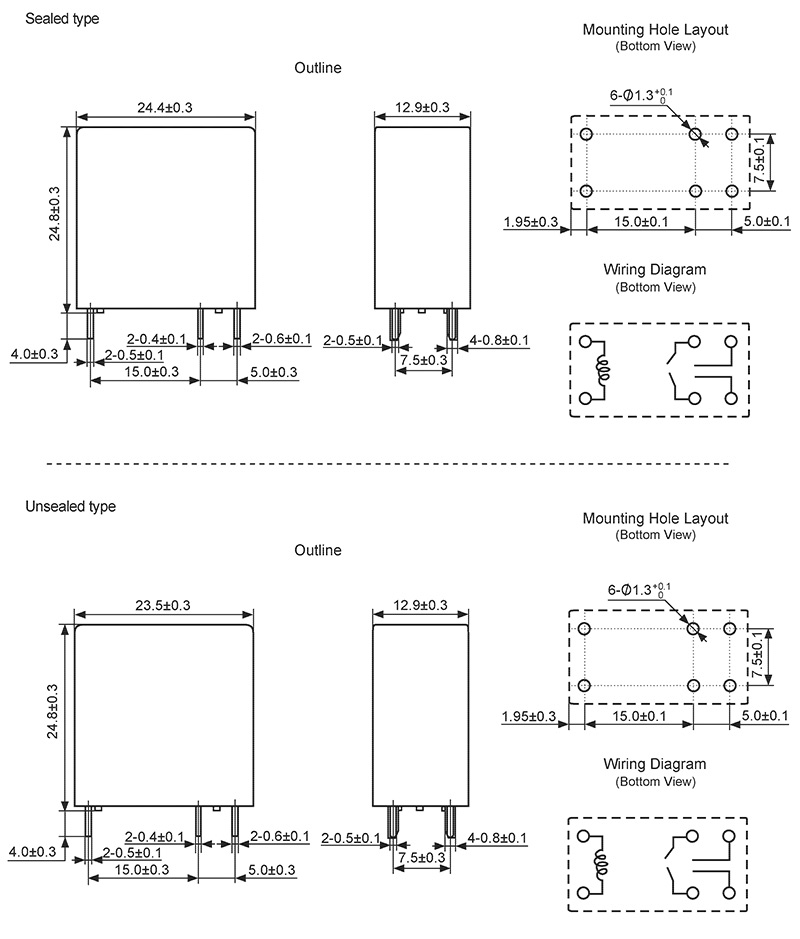

Sealed: 24.4×12.9×24.8(mm)
Unsealed: 23.5×12.0×24.8(mm)
5A contact current
2 form A contact configuration
Creepage distance: 6mm
Cross bar or rivet contacts
NO.CQC12002086131
NO.1063016(LR 109368)
NO.1426409
NO.50116141
NO.E164730
NO.40018309

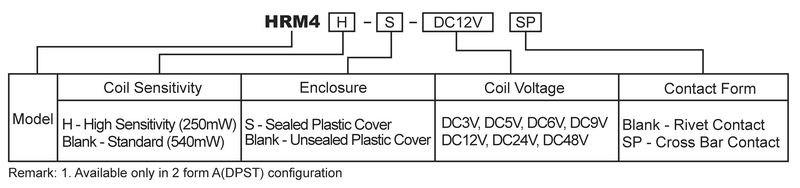

This is small size power relay HRM4. It is available only in 2 Form A (DPST) configuration. It has cross bar or rivet contacts and 5A contact current. There are two kinds of coil sensitivity: high sensitivity (250mW) and standard (540mW). It is also owned sealed and unsealed versions. HRM4 has passed many safety standards, they are UL E164730, CSA 1426409, TUV 50116141, CQC 12002086131, TUV 50116141-0001, TUV 50116141-0002, VDE 40018309, UL E164730, CSA 1063016 (LR 109368).
| Contact Data | |
| Contact Form | 2A |
| Contact Rating | 5A 250VAC/30VDC, TV-5 (Rivet Contact) 3A 125VAC/30VDC (Cross B |
| Max.Switching Voltage | 250VAC/30VDC |
| Max.Switching Current | 5A |
| Max.Switching Power | 1,250VA,150W |
| Min.Switching Load | 5VDC,100mA |
| Coil Data | |
| Coil Voltage | 3～48VDC |
| Coil Power | 250mW 540mW |
| General Data | ||
| Dielectric Strength | Open Contacts | 1,000VAC,1min |
| Coil and Contacts | 4,000VAC,1min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -30℃ to +70℃ | |
| Terminal Type | PCB | |
| Packaging | |
| Packing Method | 100pcs/Box(foam) |
| Qty/Ctn (Pcs) | 1000/Carton |
| Carton Size L×W×H(mm) | 392×382×275 |
| Approx N.W. | 13 |
| Approx G.W. | 14.8 |
Applications: The sound field.
