Product Model: HRM3

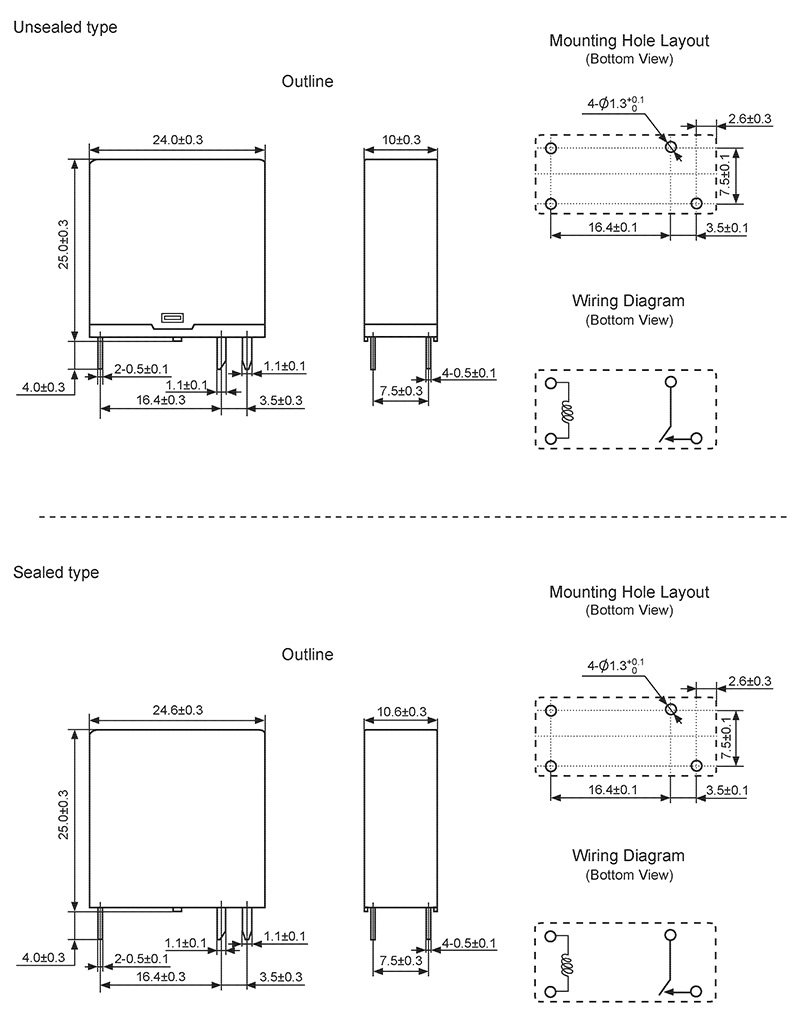

Available in sealed and unsealed versions
Sealed: 24.6×10.6×25.0(mm)
Unsealed: 24.0×10.0×25.0(mm)
High sensitivity type with power consumption of 250mW
1 form A contact configuration
Comply with TV-5 standards required for TV and audio power supplies
NO.CQC08001026616
NO.1063016(LR 109368)
NO.50125648
NO.E164730
NO.40018308

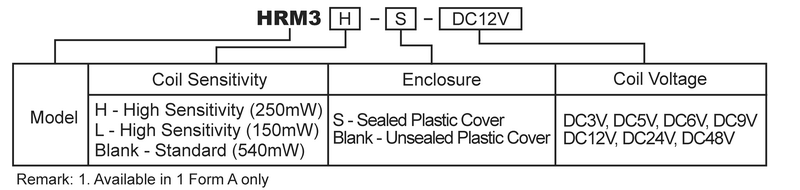

This is our HKE power relay HRM3. It is available in 1 Form A contact only. There are three kinds of coil sensitivity to choose: high sensitivity (250mW), high sensitivity (150mW), standard (540mW). HRM3 is available in sealed and unsealed versions. It complies with TV-5 standards to require for TV and audio power supplies. It has passed UL E164730, CQC 08001026616, CSA 1063016 (LR 109368), VDE 40018308, TUV 50125648-0001, TUV 50125648-002 safety approvals.
| Contact Data | |
| Contact Form | 1A |
| Contact Rating | 10A 250VAC/30VDC TV-5 |
| Max.Switching Voltage | 250VAC/30VDC |
| Max.Switching Current | 10A |
| Max.Switching Power | 2,500VA,300W |
| Min.Switching Load | 5VDC,100mA |
| Coil Data | |
| Coil Voltage | 3～48VDC |
| Coil Power | 150mW 250mW 540mW |
| General Data | ||
| Dielectric Strength | Open Contacts | 1,000VAC,1min |
| Coil and Contacts | 4,000VAC,1min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -40℃ to+70℃ | |
| Terminal Type | PCB | |
| Packaging | |
| Packing Method | 100pcs/Box(foam) |
| Qty/Ctn (Pcs) | 1000/Carton |
| Carton Size L×W×H(mm) | 392×337×275 |
| Approx N.W. | 9 |
| Approx G.W. | 11.5 |
Applications: The sound field.
Frequently asked questions:
Q1. How about your company? Do you have factories?
A: Our HKE company is one of the biggest relay manufacturers in China. Our products cover almost all the automotive market in China and have a good reputation. Of course we have our own factories, so our products come directly from the production line.
Q2. Can you send samples?
A: Yes, we can send you samples. More requirements you can contact us by email.
Q3. How long is your lead time?
A: Because of influence of COVID 19, generally the time is over 30 days. The demand for some popular products exceeds the supply, so the lead time maybe longer. But we will arrange our production as soon as possible according to your order.
Q4. How about your after-sales service?
A: We provide perfect after-sales service. If you have any problems of products, you can consult us by email. We will give you best solutions as soon as possible.
