Product Model: HRM2
General purpose power relay

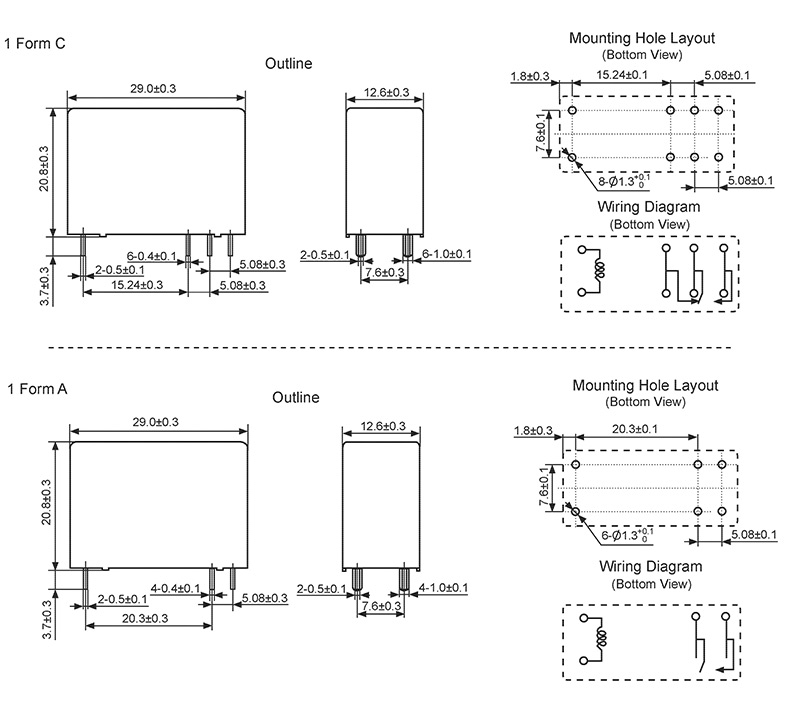

Dimensions: 29.0×12.6×20.8(mm)
Contact: 1 Form A, 1 Form C
Dielectric strength of 4000V between coil and contacts
16A contact current
Creepage distance: 8mm
NO.CQC09002035018
NO.1063015(LR 106040)
NO.50116140
NO.E164730

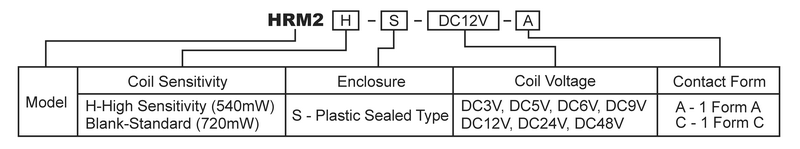

It is our general purpose power relay HRM2. It owns 16A contact current and 8mm creepage distance. It has 4000V dielectric strength between coil and contacts. There are two kinds of coil sensitivity: high sensitivity (540mW) and standard (720mW). HRM2 has 1 Form A and 1 Form C contact form. It passed CSA 1063015 (LR 106040), TUV 50116140-001, UL E164730, CQC 09002035018 safety approvals.
| Contact Data | |
| Contact Form | 1A,1C |
| Contact Rating | Resistive: 16A 250VAC/30VDC TV Rating: TV-8 125VAC Inductive: 8A 250VAC/30VDC |
| Max.Switching Voltage | 250VAC/30VDC |
| Max.Switching Current | 16A |
| Max.Switching Power | 4,000VA,480W |
| Min.Switching Load | 5VDC,100mA |
| Coil Data | |
| Coil Voltage | 3～48VDC |
| Coil Power | 540mW 720mW |
| General Data | ||
| Dielectric Strength | Open Contacts | 1,000VAC,1min |
| Coil and Contacts | 4,000VAC,1min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -30～+55℃(720mW) -30～+70℃(540mW) |
|
| Terminal Type | PCB | |
| Packaging | |
| Packing Method | 100pcs/Box(foam) |
| Qty/Ctn (Pcs) | 1000/Carton |
| Carton Size L×W×H(mm) | 444×378×255 |
| Approx N.W. | 13 |
| Approx G.W. | 14.4 |
Applications: The sound field.
