NO.CQC09002035018
NO.1063016(LR 109368)
NO.50125647
NO.E164730
NO.40023201

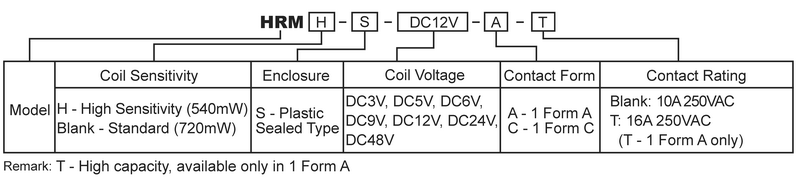

This is our HKE general purpose power relay HRM. It has two kinds of coil sensitivity: high sensitivity (540mW) and standard (720mW). HRM has two kinds of contact Form: 1 Form A and 1 Form C. There are two kinds of contact rating to choose. In high capacity, it is available only in 1 Form A. It has TV-5 rating and the creepage distance is 8mm. HRM owns UL E164730, CSA 1063016, VDE 40023201, TUV 50125647-0001, TUV 50125647-0002, CQC 9002035018 safety approvals.
| Contact Data | |
| Contact Form | 1A,1C |
| Contact Rating | Resistive: 10A 250VAC/30VDC TV Rating: TV-5 Inductive& |
| Max.Switching Voltage | 250VAC/30VDC |
| Max.Switching Current | 16A |
| Max.Switching Power | 2,500VA,300W |
| Min.Switching Load | 5VDC,100mA |
| Coil Data | |
| Coil Voltage | 3～48VDC |
| Coil Power | 540mW 720mW |
| General Data | ||
| Dielectric Strength | Open Contacts | 1,000VAC,1min |
| Coil and Contacts | 4,000VAC,1min | |
| Electrical Life(ops.) | 100,000 50,000 (COSΦ=0.4, L/R=7ms) |
|
| Operating Temperature | -30～+55℃(720mW) -30～+70℃(540mW) |
|
| Terminal Type | PCB | |
| Packaging | |
| Packing Method | 100pcs/Box(foam) |
| Qty/Ctn (Pcs) | 1000/Carton |
| Carton Size L×W×H(mm) | 444×378×255 |
| Approx N.W. | 13 |
| Approx G.W. | 14.7 |
Applications: The sound field.
Frequently asked questions:
Q1. How about your company? Do you have factories?
A: Our HKE company is one of the biggest relay manufacturers in China. Our products cover almost all the automotive market in China and have a good reputation. Of course we have our own factories, so our products come directly from the production line.
Q2. Can you send samples?
A: Yes, we can send you samples. More requirements you can contact us by email.
Q3. How long is your lead time?
A: Because of influence of COVID 19, generally the time is over 30 days. The demand for some popular products exceeds the supply, so the lead time maybe longer. But we will arrange our production as soon as possible according to your order.
Q4. How about your after-sales service?
A: We provide perfect after-sales service. If you have any problems of products, you can consult us by email. We will give you best solutions as soon as possible.
