Product Model: HKE19
Magnetic Latching Relay

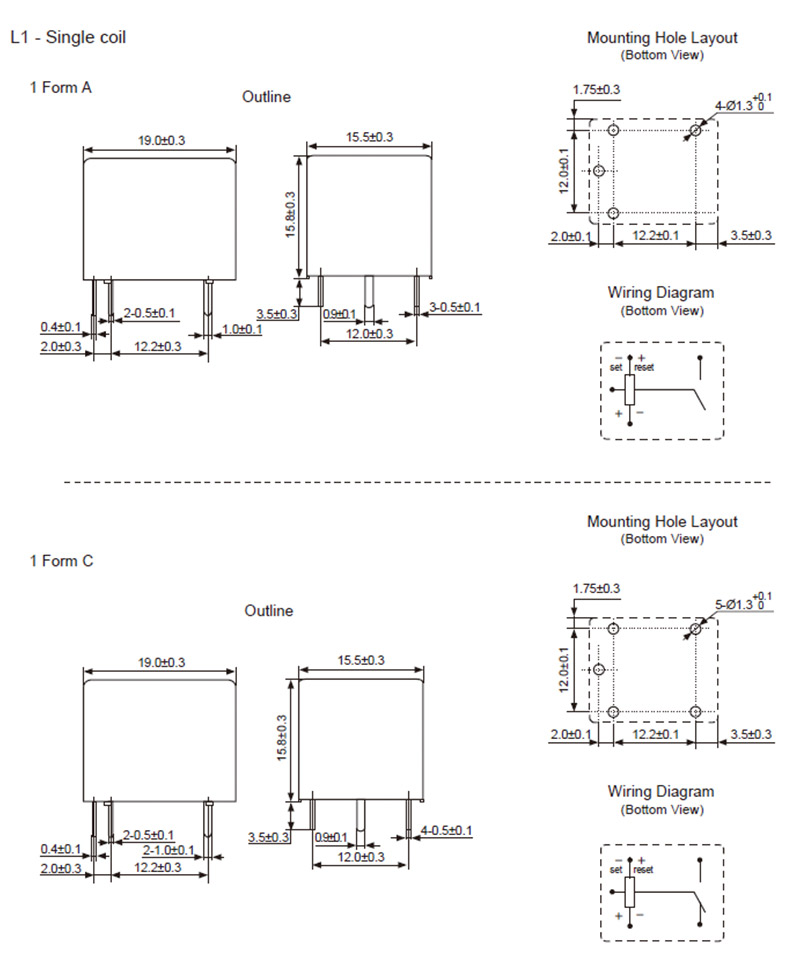

Outline Dimension：19.0×15.5×15.8mm
15A of switching capability
Contact: 1 Form A, 1 Form C
Only pulse excitation, single and double coil work available
Dielectric strength of 2700V between coil and contacts
Friendly product (RoHS Compliant)
The product HKE19 is our magnetic latching relay. It has two contact forms: 1 Form A and 1 Form C. The contact material is AgSnO2. It has Max 15A switching capacity. It has pulse excitation and only available in single or double coil work. The dielectric strength between coil and contacts is 2700V. HKE19 belongs to friendly product, it complies to RoHS.
| Contact Data | |
| Contact Form | 1A,1C |
| Contact Rating | 10A 277VAC(Res) 15A 120VAC(Tungsten lamp) |
| Max.Switching Voltage | 277VAC/30VDC |
| Max.Switching Current | 15A(1 Form A) 10A(1 Form C) |
| Max.Switching Power | |
| Min.Switching Load | 2770VAC/300W |
| Coil Data | |
| Coil Voltage | DC5V~DC48V |
| Coil Power | L1:0.4W L2:0.8W |
| General Data | ||
| Dielectric Strength | Open Contacts | 750VAC |
| Coil and Contacts | 2700VAC | |
| Electrical Life(ops.) | 1×10,000 operations (10A 277VAC Resistance ON/OFF:1S/9S)
6×1000 operations (15A 120VAC Tungsten lamp ON/OFF:1S/9S)
|
|
| Operating Temperature | 23℃ | |
| Terminal Type | PCB | |
