Product Model: HKE18
Magnetic Latching Relay

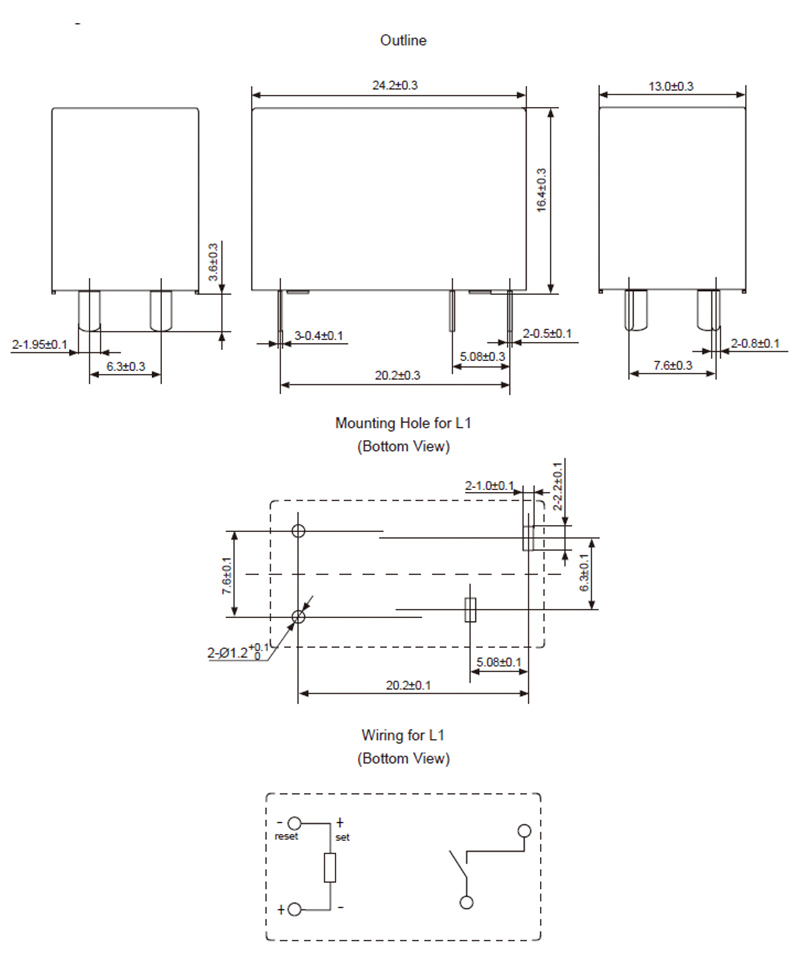

Outline Dimension：24.2×13.0×16.4mm
20A of switching capability
Contact: 1 Form A
Only pulse excitation, single and double coil work available
Dielectric strength of 4000V between coil and contacts
Friendly product (RoHS Compliant)
NO.E164730

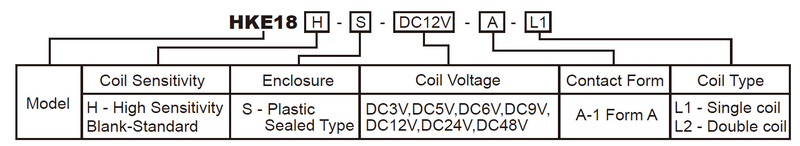

This is our magnetic latching relay HKE18. There are two kinds of coil sensitivity, high sensitivity and standard. It is available in 1 Form A contact only. It has 20A switching capacity and two contact coil: single coil or double coil. The dielectric strength between coil and contacts is 4000V. HKE18 meets RoHS and UL E164730 safety standard.
| Contact Data | |
| Contact Form | 1A |
| Contact Rating | 16A 250VAC/30VDC,5×10,000(Res) 20A 250VAC,2×10,000(Res)1.5HP 250VAC,4×10,000(HP)TV-8 250VAC,2.5×10,000 |
| Max.Switching Voltage | 277VAC/30VDC |
| Max.Switching Current | 20A |
| Max.Switching Power | 5540VA/600W |
| Min.Switching Load | 100mA 5VDC |
| Coil Data | |
| Coil Voltage | DC3V~DC48V |
| Coil Power | Standard: L1:08W,L2:1.2W Sensitivity: L1:06W,L2:0.8W |
| General Data | ||
| Dielectric Strength | Open Contacts | 1,000VAC |
| Coil and Contacts | 4,000VAC | |
| Electrical Life(ops.) | Refer to “contact load” | |
| Operating Temperature | 85℃ | |
| Terminal Type | PCB | |
| Packaging | |
| Packing Method | 25pcs/Tube |
| Qty/Ctn (Pcs) | 1000/Carton |
| Carton Size L×W×H(mm) | 345×289×158 |
| Approx N.W. | 11.0 |
| Approx G.W. | 12.5 |
Frequently asked questions:
Q1. How about your company? Do you have factories?
A: Our HKE company is one of the biggest relay manufacturers in China. Our products cover almost all the automotive market in China and have a good reputation. Of course we have our own factories, so our products come directly from the production line.
Q2. Can you send samples?
A: Yes, we can send you samples. More requirements you can contact us by email.
Q3. How long is your lead time?
A: Because of influence of COVID 19, generally the time is over 30 days. The demand for some popular products exceeds the supply, so the lead time maybe longer. But we will arrange our production as soon as possible according to your order.
Q4. How about your after-sales service?
A: We provide perfect after-sales service. If you have any problems of products, you can consult us by email. We will give you best solutions as soon as possible.
