Product Model: HKE17
Magnetic Latching Relay
Outline Dimension：24.0×10.0×18.8mm
SPST 16A Magnetic latching relay
Max. Surge Current 100A/2ms
Comply to IEC 60335-1: household and similar electrical appliances-safety
Impulse voltage is 12000V, dielectric strength is 5000V

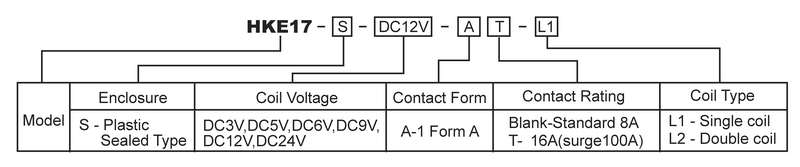

This is our SPST 16A magnetic latching relay HKE17. It is available in 1 Form A contact and has two coil type, single coil and double coil. The standard contact rating is 8A, the Max. Surge current is 100A/2ms. HKE17 impulse voltage is 12000V, dielectric strength is 5000V. It complies to IEC 60335-1: household and similar electrical appliances safety.
| Contact Data | |
| Contact Form | 1A |
| Contact Rating | Standard：8A 250VAC T ：16A 277VAC |
| Max.Switching Voltage | 250VAC/277VAC(T) |
| Max.Switching Current | 8A/16A(T) |
| Max.Switching Power | 2000VA/4432VA(T) |
| Min.Switching Load | 1A 6VDC |
| Coil Data | |
| Coil Voltage | 3～24VDC |
| Coil Power | 0.2W 0.4W 0.6W 1.0W |
| General Data | ||
| Dielectric Strength | Open Contacts | 1,000VAC,50/60Hz,1min |
| Coil and Contacts | 5,000VAC,50/60Hz,1min | |
| Electrical Life(ops.) | 100,000(8A,20ops/min) 20,000(16A,frequency 1s:5s) |
|
| Operating Temperature | -40℃ to +85℃(8A ) -40℃ to +70℃(8A～16A ) |
|
| Terminal Type | PCB | |
