NO.E164730

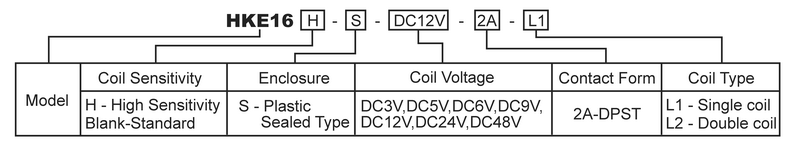

This is our DPST 16A magnetic latching relay HKE16. This standard is outstanding in the industry. It has two kinds of coil type: single coil and double coil. It also has two kinds of coil sensitivity, standard and high sensitivity. The product HKE16 is environmental and energy-saving, it meets RoHS. It has passed UL E322375 safety approval.
| Contact Data | |
| Contact Form | 2A |
| Contact Rating | 16A 250VAC,50,000(Res) 20A 250VAC,20,000(Res) 1.5HP 250VAC,30,000(HP)8A 220VAC, cosφ0.4, 30,000 3300W 277VAC, 20,000 (Electronic Ballast) |
| Max.Switching Voltage | 277VAC |
| Max.Switching Current | 20A |
| Max.Switching Power | 5000VA |
| Min.Switching Load | 1A 24VDC |
| Coil Data | |
| Coil Voltage | 3～48VDC |
| Coil Power | 0.6W 0.8W 1.2W |
| General Data | ||
| Dielectric Strength | Open Contacts | 1,000VAC,50/60Hz,1min |
| Coil and Contacts | 4,000VAC,50/60Hz,1min | |
| Electrical Life(ops.) | Refer to ‘contact load’ | |
| Operating Temperature | -40℃ to +85℃ | |
| Terminal Type | PCB | |
Applications: It is widely used in ammeter, switch, mechanical equipment, light control, etc
