Product Model: HEV200
Compact, light weight, low cost for enclosure, high current HV relay
Able to attach energy saving module for coil
Optional auxiliary contact, monitor the status of main contact in real time
Highly sealed, safe and reliable because fully insulated from coil and contacts
Available for multiple coil supply mode
Compliance with ROHS

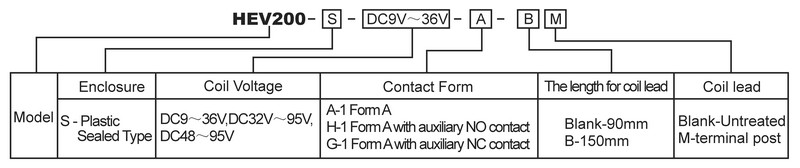

The product HEV200 is our high current HV relay. Because of its plastic sealed type, it has low cost for enclosure. It is available in 1 Form A contact. Besides, it can add optional auxiliary contact to monitor the status of main contact in real time. There are two kinds of coil lead length to choose from: 90mm or 150mm. It has various coil supply modes. HEV200 compliance with RoHS.
| Contact Data | |
| Contact Form | 1A |
| Contact Rating | 2A 30VDC/3A 125VAC |
| Max.Switching Voltage | – |
| Max.Switching Current | – |
| Max.Switching Power | – |
| Min.Switching Load | 100mA 8V |
| Coil Data | |
| Coil Voltage | DC9～36V DC32V～95V DC48～95V |
| Coil Power | – |
| General Data | ||
| Dielectric Strength | Open Contacts | 2,200VAC,50/60Hz,1min |
| Coil and Contacts | 2,200VAC,50/60Hz,1min | |
| Electrical Life(ops.) | 100,000(28VDC) 25000(120VDC) 10000(270VDC)3000(400VDC) 800(600VDC) 150(900VDC) |
|
| Operating Temperature | 40℃ to +85℃ | |
| Terminal Type | – | |
