NO.CQC09002030014
NO.50097843
NO.E164730
NO.40043990

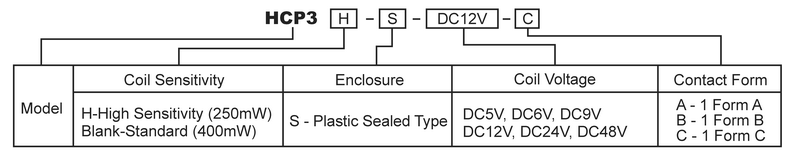

The product HCP3 is our low profile power relay. It has two kinds of coil sensitivity: high sensitivity (250mW) and standard (400mW). It has three kinds of contact form: 1 Form A, 1 Form B and 1 Form C. The Max. Switching capacity is 16A, the insulation is 5KV, the creepage is 10mm. HCP3 has passed TUV 50097843, CQC 09002030014, VDE 40043990, UL E164730 safety approvals.
| Contact Data | |

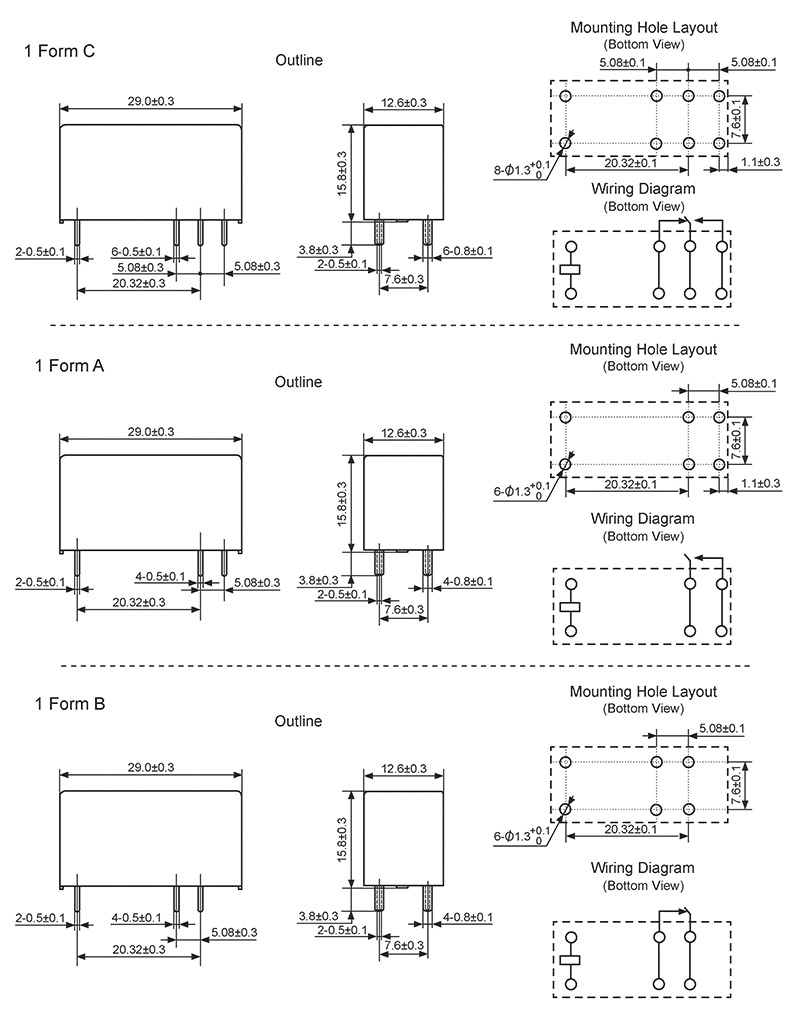

| Contact Form | 1A,1B,1C |
| Contact Rating | Resistive：16A 250VAC/30VDC Inductive：8A 250VAC Cosφ=0.4 |
| Max.Switching Voltage | 440VAC/120VDC |
| Max.Switching Current | 16A |
| Max.Switching Power | 4,000VA,480W |
| Min.Switching Load | 5VDC,100mA |
| Coil Data | |
| Coil Voltage | 3～48VDC |
| Coil Power | 250mW 400mW |
| General Data | ||
| Dielectric Strength | Open Contacts | 1,000VAC,1min |
| Coil and Contacts | 5,000VAC,1min | |
| Electrical Life(ops.) | 100,000 50,000 (Resistive: Cosφ=0.4, L/R=7ms) |
|
| Operating Temperature | -40℃ to +85℃ | |
| Terminal Type | PCB | |
| Packaging | |
| Packing Method | 100pcs/Box(foam) |
| Qty/Ctn (Pcs) | 1000/Carton |
| Carton Size L×W×H(mm) | 444×378×230 |
| Approx N.W. | 12.0 |
| Approx G.W. | 13.3 |
Applications: Appliances, intelligent home, Thermostat, etc
Frequently asked questions:
Q1. How about your company? Do you have factories?
A: Our HKE company is one of the biggest relay manufacturers in China. Our products cover almost all the automotive market in China and have a good reputation. Of course we have our own factories, so our products come directly from the production line.
Q2. Can you send samples?
A: Yes, we can send you samples. More requirements you can contact us by email.
Q3. How long is your lead time?
A: Because of influence of COVID 19, generally the time is over 30 days. The demand for some popular products exceeds the supply, so the lead time maybe longer. But we will arrange our production as soon as possible according to your order.
Q4. How about your after-sales service?
A: We provide perfect after-sales service. If you have any problems of products, you can consult us by email. We will give you best solutions as soon as possible.
