This is our HKE power relay HCP2. It has 8A Max. Switching current capacity and 400mW coil sensitivity. There are two kinds of contact form: 2 Form A and 2 Form C. It has 10mm creepage and 5KV insulation. The resistive contact rating is 8A 250VAC/30VDC, the inductive contact rating is 4A 250VAC. HCP2 passed UL E164730, TUV 50062453-0002, CQC 09002030014, VDE 40043990 safety approvals.
| Contact Data | |

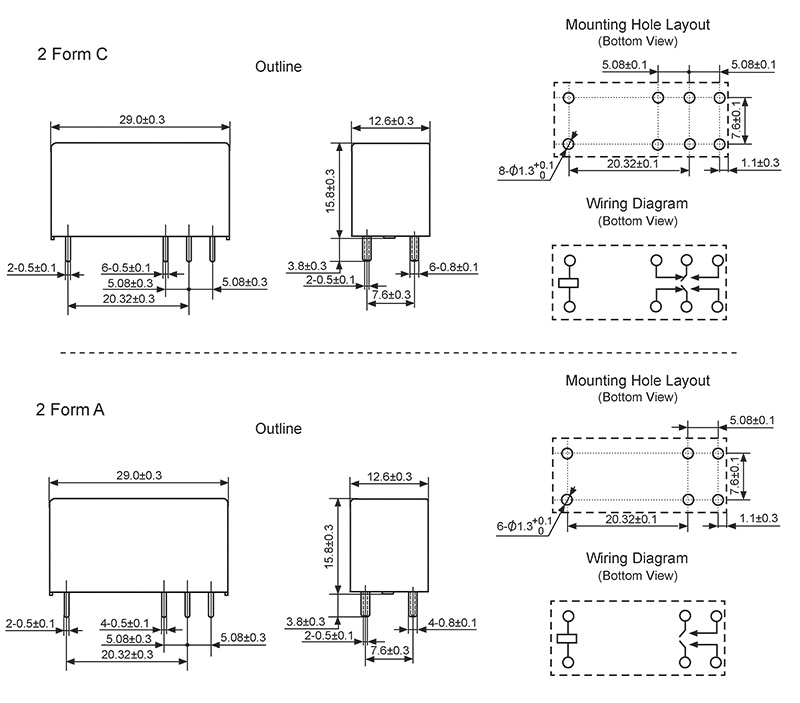

| Contact Form | 2A,2C |
| Contact Rating | Resistive：8A 250VAC/30VDC Inductive：4A 250VAC Cosφ=0.4 |
| Max.Switching Voltage | 440VAC/120VDC |
| Max.Switching Current | 8A |
| Max.Switching Power | 2,000VA,240W |
| Min.Switching Load | 5VDC,100mA |
| Coil Data | |
| Coil Voltage | 5～48VDC |
| Coil Power | 400mW |
| General Data | ||
| Dielectric Strength | Open Contacts | 1,000VAC,1min |
| Coil and Contacts | 5,000VAC,1min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -40℃ to +85℃ | |
| Terminal Type | PCB | |
| Packaging | |
| Packing Method | 100pcs/Box(foam) |
| Qty/Ctn (Pcs) | 1000/Carton |
| Carton Size L×W×H(mm) | 444×378×230 |
| Approx N.W. | 13.0 |
| Approx G.W. | 14.3 |
Applications: It is used in home appliances, Thermostat, etc
