NO.CQC09002030014
NO.50097843
NO.E164730
NO.40043990

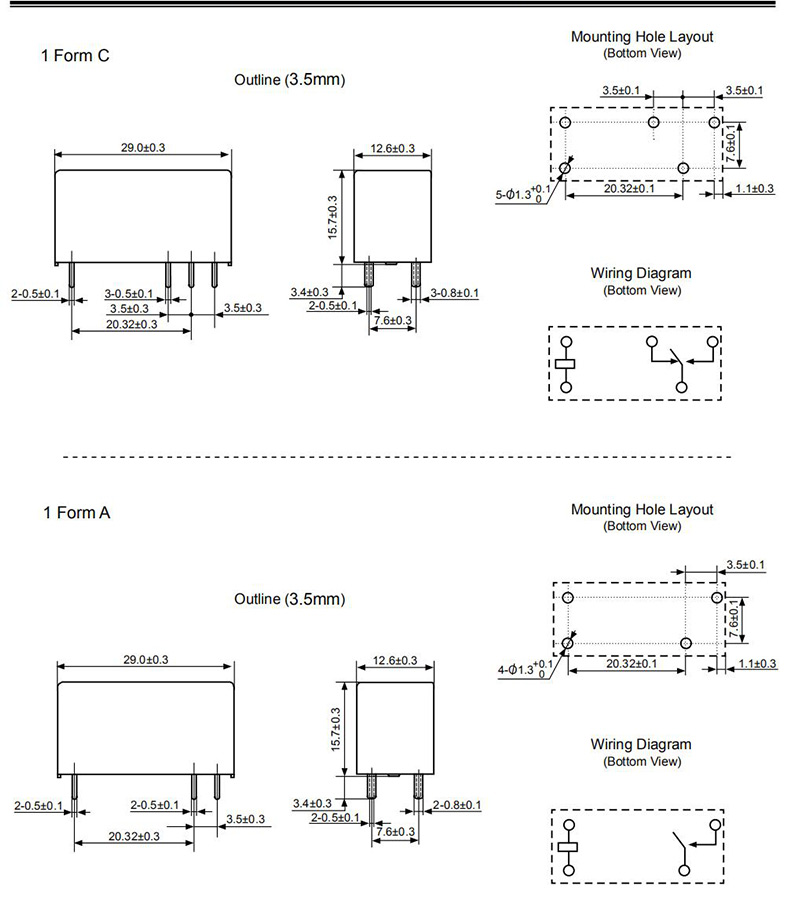

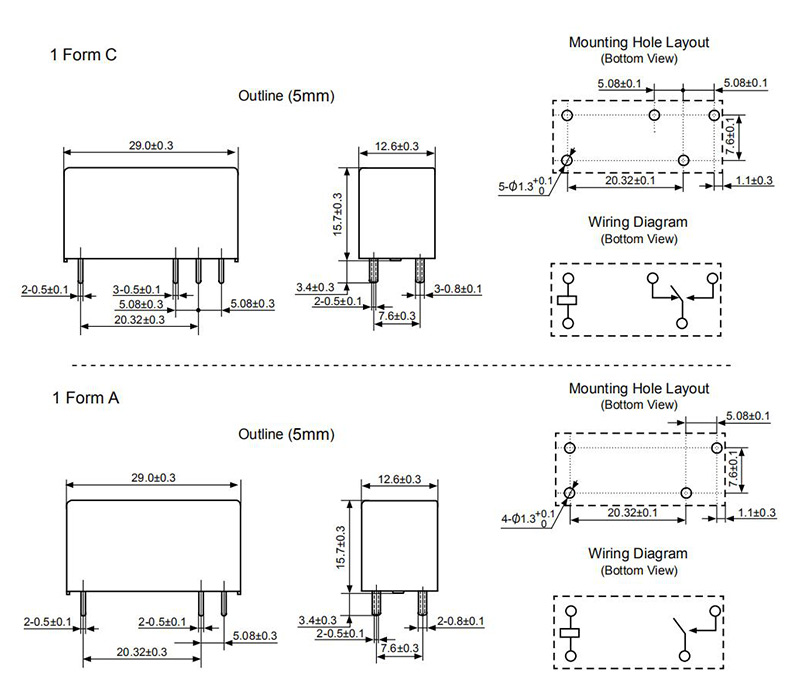

This product HCP1 is our low profile power relay. It is available in 1 Form A and 1 Form C contact. It has 400mW nominal coil power, 5KV insulation, 10mm creepage. The Max. Switching capacity is 12A and the relay height is 15.8mm. HCP1 owns UL E164730, TUV 50097843, CQC 09002030014, VDE 40043990 safety standards.
| Contact Data | |
| Contact Form | 1A, 1C |
| Contact Rating | Resistive: 12A 250VAC/30VDC
Inductive: 5A 250VAC Cosφ=0.4 |
| Max.Switching Voltage | 440VAC/120VDC |
| Max.Switching Current | 12A |
| Max.Switching Power | 3,000VA,360W |
| Min.Switching Load | 5VDC,100mA |
| Coil Data | |
| Nominal Coil Power | 400mW |
| General Data | ||
| Dielectric Strength | Open Contacts | 1,000VAC,1min |
| Coil and Contacts | 5,000VAC,1min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -40℃ to +85℃ | |
| Terminal Type | PCB | |
| Packaging | |
| Packing Method | 100pcs/Box(foam) |
| Qty/Ctn (Pcs) | 1000/Carton |
| Carton Size L×W×H(mm) | 444×378×230 |
| Approx N.W. | 13 |
| Approx G.W. | 14.5 |
Applications: It is widely used in appliances,intelligent home,Thermostat,etc
