Product Model: F6
Miniature relay with high switching contact capacity, 20A/250VAC and 25A/250VAC
Low profile, height 16mm
Dielectric strength of 5000V between coil and contacts
Ideal for Switching compressor and inverter loads

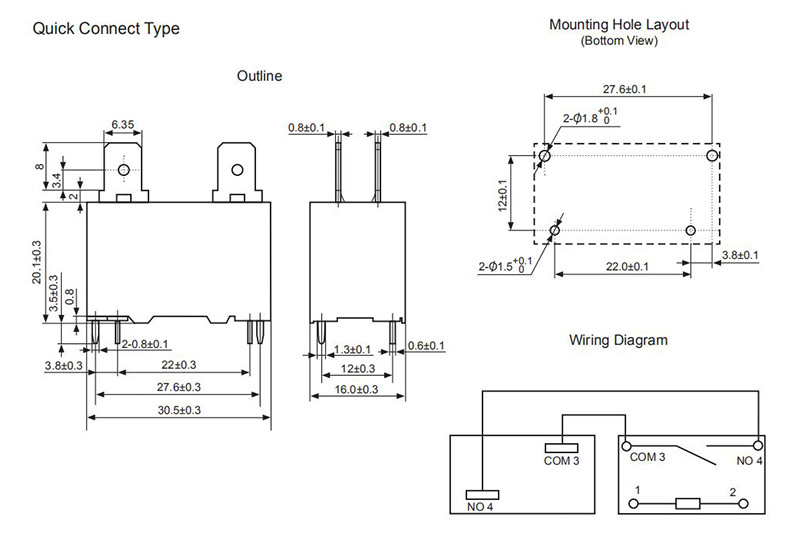

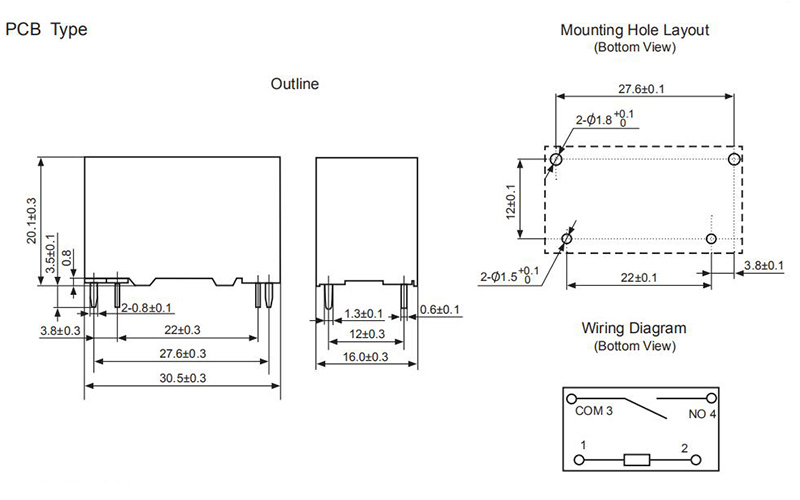

Available in both PCB and quick connect terminals
NO.CQC09002033819
NO.E164730
NO.40028681
This is our miniature power relay F6. It is available in both PCB and quick connect terminals. It has high switching contact and the nominal coil power is 900mW. It has 5000V dielectric strength between coil and contacts. This relay is low profile and the height is only 16mm. F6 has passed UL E164730, UL E322395, VDE 40028681, CQC 09002033819, Explosion-proof Certificate CNEx16.3132U safety standards.
| Contact Data | |
| Contact Form | 1A |
| Contact Rating | F6: 25A 250VAC
F6-P: 20A 250VAC |
| Max.Switching Voltage | 250VAC |
| Max.Switching Current | 25A |
| Max.Switching Power | 6,250VA |
| Min.Switching Load | 5VDC,100mA |
| Coil Data | |
| Coil Voltage | 5～24VDC |
| Coil Power | 900mW |
| General Data | ||
| Dielectric Strength | Open Contacts | 1,500VAC,1min |
| Coil and Contacts | 5,000VAC,1min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -40℃ to +85℃ | |
| Terminal Type | PCB Quick connect |
|
| Packaging | |
| Packing Method | 50pcs/Box(plastic) |
| Qty/Ctn (Pcs) | 1000/Carton |
| Carton Size L×W×H(mm) | 462×370×234 |
| Approx N.W. | 19.2 |
| Approx G.W. | 20.7 |
Applications: It is widely used in flash light, control instruments, window motor control, low temperature start, electronic positioning instruments, center door lock, motor control, etc.
Frequently asked questions:
Q1. How about your company? Do you have factories?
A: Our HKE company is one of the biggest relay manufacturers in China. Our products cover almost all the automotive market in China and have a good reputation. Of course we have our own factories, so our products come directly from the production line.
Q2. Can you send samples?
A: Yes, we can send you samples. More requirements you can contact us by email.
Q3. How long is your lead time?
A: Because of influence of COVID 19, generally the time is over 30 days. The demand for some popular products exceeds the supply, so the lead time maybe longer. But we will arrange our production as soon as possible according to your order.
Q4. How about your after-sales service?
A: We provide perfect after-sales service. If you have any problems of products, you can consult us by email. We will give you best solutions as soon as possible.
