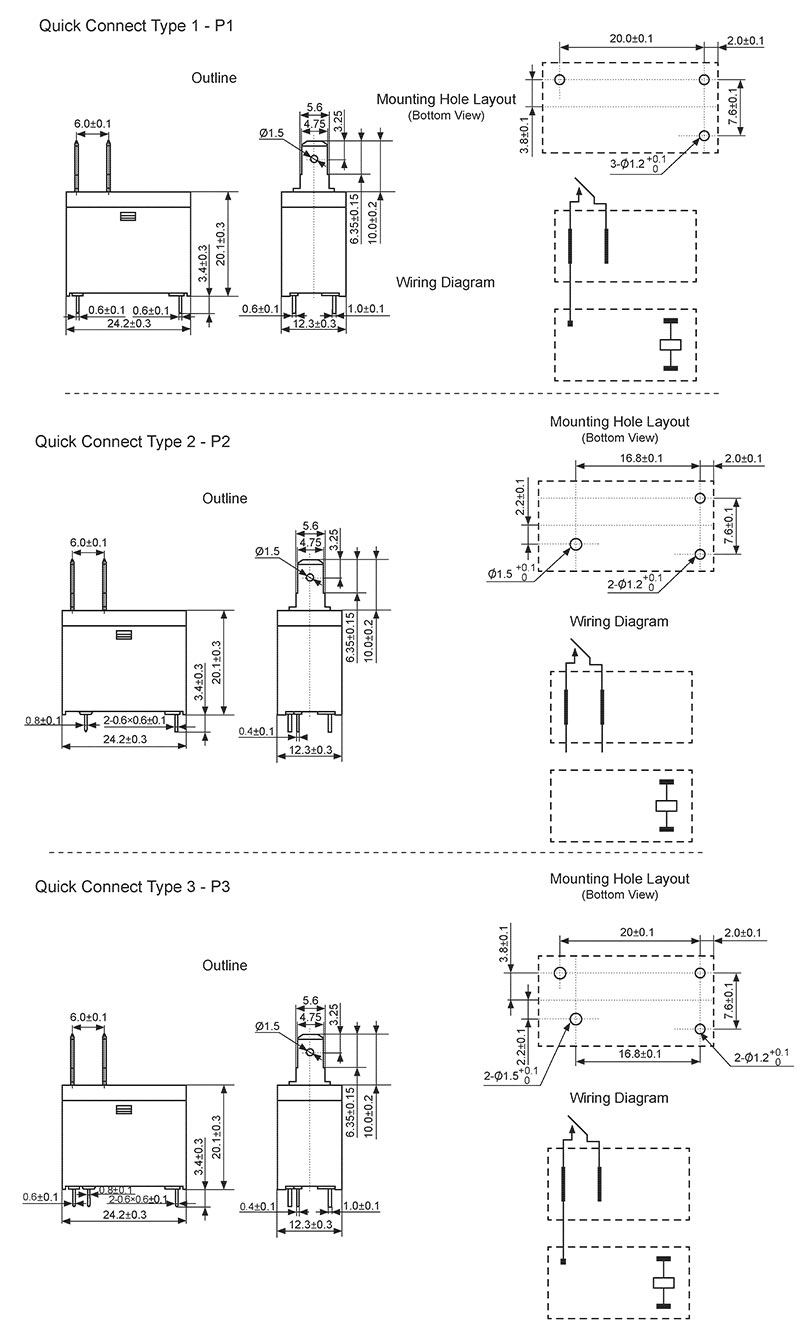

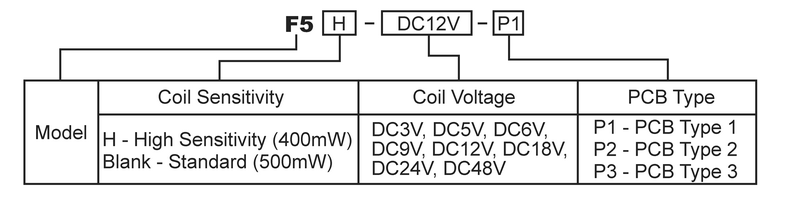

This product F5 is compact and small size power relay. It has two kinds of coil sensitivity: high sensitivity (400mW) and standard (500mW). It is available in PCB or quick connect terminals, there are three types PCB to choose from. It has 5000V dielectric strength between coil and contacts and 20A Max. Switching current. F5 passed UL E164730, VDE 40025393, TUV 50130793, CQC 08001022889 safety approvals.
| Contact Data | |
| Contact Form | 1A |
| Contact Rating | 16A 250VAC 20A 125VAC |
| Max.Switching Voltage | 250VAC/30VDC |
| Max.Switching Current | 20A |
| Max.Switching Power | 4,000VA/480W |
| Min.Switching Load | 5VDC,100mA |
| Coil Data | |
| Coil Voltage | 3～48VDC |
| Coil Power | 400mW 500mW |
| General Data | ||
| Dielectric Strength | Open Contacts | 1,000VAC,1min |
| Coil and Contacts | 5,000VAC,1min | |
| Electrical Life(ops.) | 100,000(16A 250VAC) | |
| Operating Temperature | -40℃ to +85℃ | |
| Terminal Type | PCB Quick connect |
|
| Packaging | |
| Packing Method | 50pcs/Box(plastic) |
| Qty/Ctn (Pcs) | 1000/Carton |
| Carton Size L×W×H(mm) | 467×310×169 |
| Approx N.W. | 11.0 |
| Approx G.W. | 13.2 |
Applications: It is widely used in flash light, control instruments, window motor control, low temperature start, electronic positioning instruments, center door lock, motor control, etc.
Frequently asked questions:
Q1. How about your company? Do you have factories?
A: Our HKE company is one of the biggest relay manufacturers in China. Our products cover almost all the automotive market in China and have a good reputation. Of course we have our own factories, so our products come directly from the production line.
Q2. Can you send samples?
A: Yes, we can send you samples. More requirements you can contact us by email.
Q3. How long is your lead time?
A: Because of influence of COVID 19, generally the time is over 30 days. The demand for some popular products exceeds the supply, so the lead time maybe longer. But we will arrange our production as soon as possible according to your order.
Q4. How about your after-sales service?
A: We provide perfect after-sales service. If you have any problems of products, you can consult us by email. We will give you best solutions as soon as possible.
