Product Model: CMP8
High contact capacity, up to 30A/250VAC
Dielectric strength of 2500V between coil and contacts
Available in both PCB and quick connect terminals

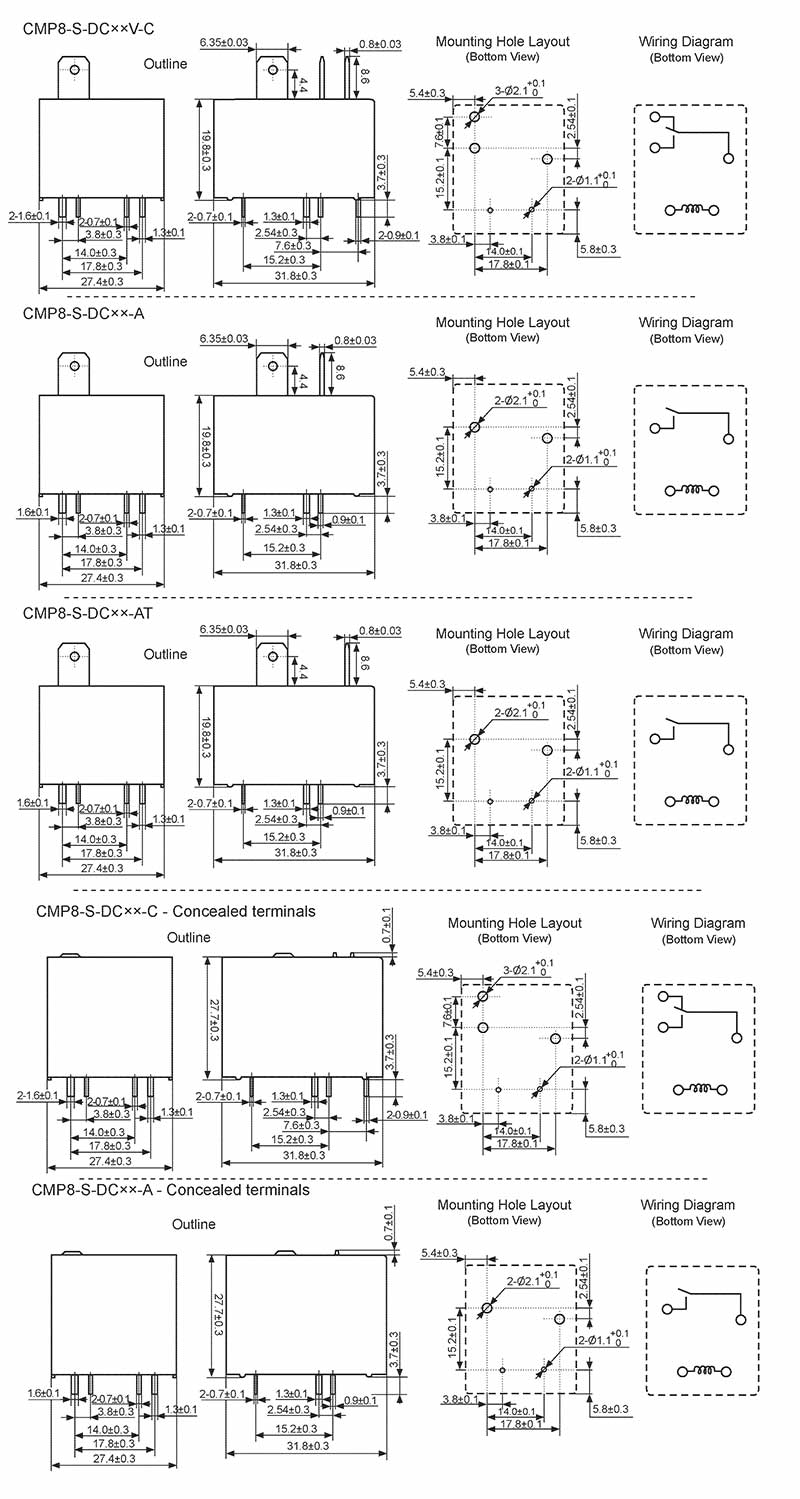

Exposed or concealed quick connect terminals
NO.CQC08002027613
NO.50125643
NO.E164730
NO.40009646
This is our high contact capacity power relay CMP8. It is available in exposed or concealed terminals, both PCB and quick connect terminals. There are two kinds of contact form: 1 Form A and 1 Form C. The dielectric strength between coil and contacts is 2500V. It meets TUV 50125643-0001, TUV 50125643-0002, VDE 40009646, UL E164730, UL E322395, CQC 080002027613, Explosion-proof Certificate CNEx16.1221U.
| Contact Data | |

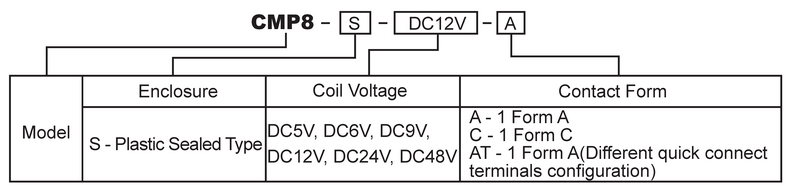

| Contact Form | 1A,1C |
| Contact Rating | A：30A 250VAC/24VDC C：NO:20A 250VAC/24VDC NC:15A 25VAC/24VDC |
| Max.Switching Voltage | 250VAC/28VDC |
| Max.Switching Current | 30A |
| Max.Switching Power | 7,500VA,560W |
| Min.Switching Load | 5VDC,100mA |
| Coil Data | |
| Coil Voltage | 5～48VDC |
| Coil Power | 900mW |
| General Data | ||
| Dielectric Strength | Open Contacts | 1,500VAC,1min |
| Coil and Contacts | 2,500VAC,1min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -40℃ to +85℃ | |
| Terminal Type | PCB Quick connect |
|
| Packaging | |
| Packing Method | 100pcs/Box(foam) |
| Qty/Ctn (Pcs) | 500/Carton |
| Carton Size L×W×H(mm) | 450×343×290 |
| Approx N.W. | 13.0 |
| Approx G.W. | 15.7 |
Applications: It is widely used in flash light, control instruments, window motor control, low temperature start, electronic positioning instruments, center door lock, motor control, etc.
Frequently asked questions:
Q1. How about your company? Do you have factories?
A: Our HKE company is one of the biggest relay manufacturers in China. Our products cover almost all the automotive market in China and have a good reputation. Of course we have our own factories, so our products come directly from the production line.
Q2. Can you send samples?
A: Yes, we can send you samples. More requirements you can contact us by email.
Q3. How long is your lead time?
A: Because of influence of COVID 19, generally the time is over 30 days. The demand for some popular products exceeds the supply, so the lead time maybe longer. But we will arrange our production as soon as possible according to your order.
Q4. How about your after-sales service?
A: We provide perfect after-sales service. If you have any problems of products, you can consult us by email. We will give you best solutions as soon as possible.
