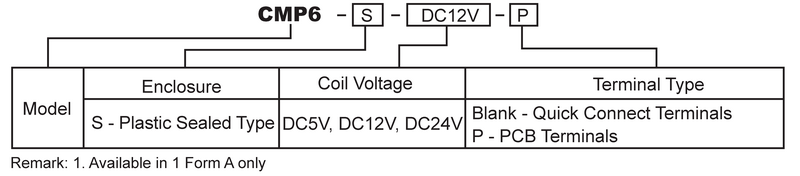

Product Model: CMP6
Miniature relay with high switching contact capacity, 20A/250VAC
Dielectric strength of 4500V between coil and contacts
Ideal for switching compressor and inverter loads
Available in both PCB and quick connect terminals
NO.CQC08002027610
NO.1369391(LR 109368)
NO.50091133
NO.E164730
NO.40009196
This product CMP6 is miniature power relay. It is available in 1 Form A contact only. It has 20A 250VAC high switching contact capacity and the nominal coil power is 900mW. It is available in both PCB and quick connect terminals. The dielectric strength between coil and contacts is 4500V. CMP6 also meets UL E164730, UL E322395, CSA 1369391 (LR 109368), TUV 50091133, CQC 08002027610 safety approvals.
| Contact Data | |
| Contact Form | 1A |
| Contact Rating | Resistive: 20A 250VAC/30VDC Inrush Current: 80A Break Current: 20A |
| Max.Switching Voltage | 250VAC/30VDC |
| Max.Switching Current | 20A |
| Max.Switching Power | 5,000VA, 600W |
| Min.Switching Load | 5VDC, 100mA |
| Coil Data | |
| Coil Voltage | 5～24VDC |
| Coil Power | 900mW |
| General Data | ||
| Dielectric Strength | Open Contacts | 1,000VAC, 1min |
| Coil and Contacts | 4,500VAC, 1min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -20℃ to +55℃ | |

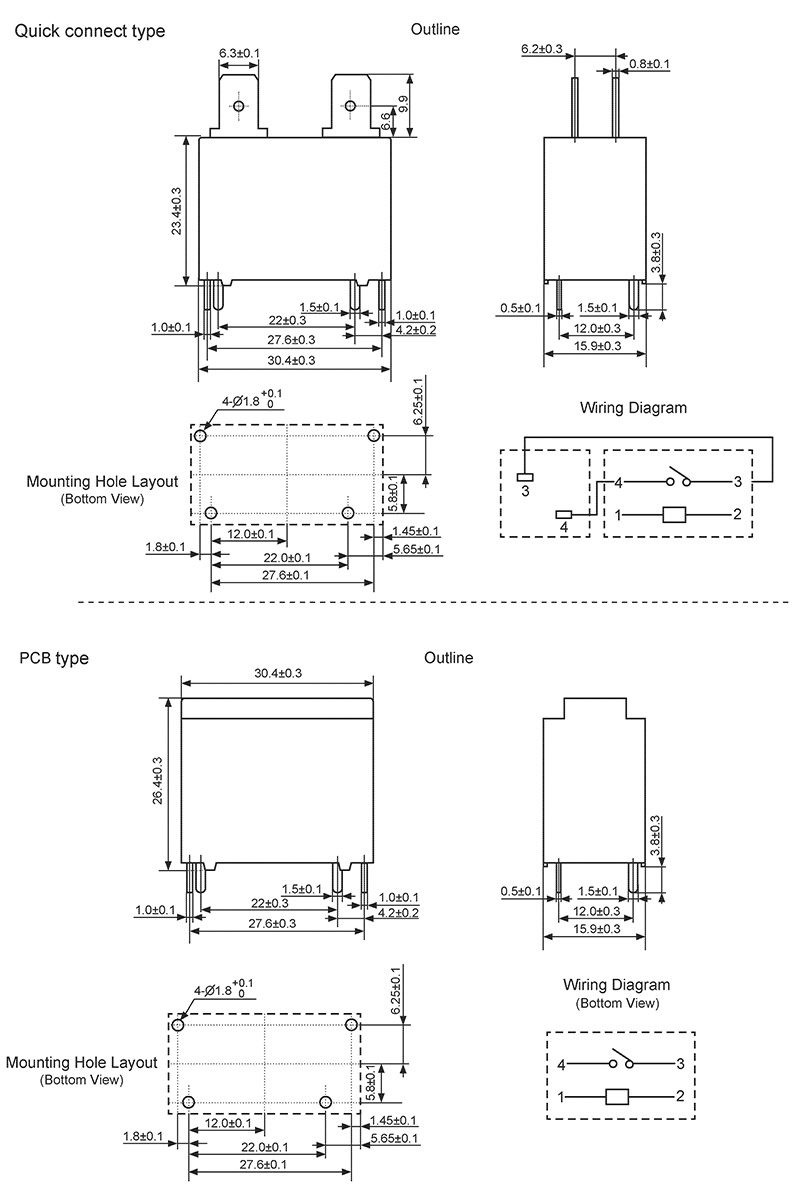

| Terminal Type | PCB Quick connect |
|
| Packaging | |
| Packing Method | 50pcs/Box(foam) |
| Qty/Ctn (Pcs) | 500/Carton |
| Carton Size L×W×H(mm) | 458×252×325 |
| Approx N.W. | 10.0 |
| Approx G.W. | 11.8 |
Applications: It is widely used in flash light, control instruments, window motor control, low temperature start, electronic positioning instruments, center door lock, motor control, etc.
Frequently asked questions:
Q1. How about your company? Do you have factories?
A: Our HKE company is one of the biggest relay manufacturers in China. Our products cover almost all the automotive market in China and have a good reputation. Of course we have our own factories, so our products come directly from the production line.
Q2. Can you send samples?
A: Yes, we can send you samples. More requirements you can contact us by email.
Q3. How long is your lead time?
A: Because of influence of COVID 19, generally the time is over 30 days. The demand for some popular products exceeds the supply, so the lead time maybe longer. But we will arrange our production as soon as possible according to your order.
Q4. How about your after-sales service?
A: We provide perfect after-sales service. If you have any problems of products, you can consult us by email. We will give you best solutions as soon as possible.
