HKE CMA58 12VDC 1 Form C Contact Plastic Cover Sealed Automotive Relay

Product Model: CMA58
Reduction of 20dB sound pressure
Saving Space
Plastic Cover Sealed
Compliance to Rohs、ELV Directive

Product Features:

This is our miniature automotive mute relay CMA58. The biggest advantage is its quietness. It can reduce 20dB sound pressure. Because of its small size, it can save much space. It is available in 1 Form C contact only. It meets RoHS, ELV directive.

hke cma58 12vdc 1 form c contact plastic cover sealed automotive relay 2

Product Parameters:

Contact Data
Contact Form 1C
Contact Rating NO/NC:20A/10A 14VDC
Max.Switching Voltage 16VDC
Max.Switching Current 20A
Max.Switching Power 320W
Min.Switching Load 1A 14VDC

Coil Data
Coil Voltage 12VDC
Coil Power 0.64W

General Data
Dielectric Strength Open Contacts 550VAC,50/60Hz,1 min
Coil and Contacts 550VAC,50/60Hz,1 min
Electrical Life(ops.) 100,000
Operating Temperature -40℃ to +85℃
Terminal Type PCB

Application and After-Sales Service:

Applications: Intermittent wipers and applications requiring quietness, etc

Frequently asked questions:
Q1. How about your company? Do you have factories?
A: Our HKE company is one of the biggest relay manufacturers in China. Our products cover almost all the automotive market in China and have a good reputation. Of course we have our own factories, so our products come directly from the production line.

Q2. Can you send samples?
A: Yes, we can send you samples. More requirements you can contact us by email.

Q3. How long is your lead time?
A: Because of influence of COVID 19, generally the time is over 30 days. The demand for some popular products exceeds the supply, so the lead time maybe longer. But we will arrange our production as soon as possible according to your order.

Q4. How about your after-sales service?
A: We provide perfect after-sales service. If you have any problems of products, you can consult us by email. We will give you best solutions as soon as possible.

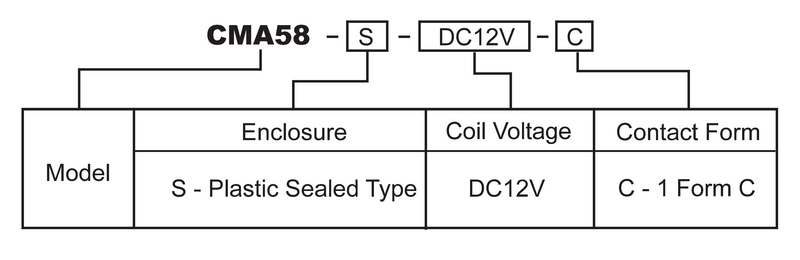

Ordering information:

hke cma58 12vdc 1 form c contact plastic cover sealed automotive relay 2
