Product Model: CMA56/562
Miniature automotive relay

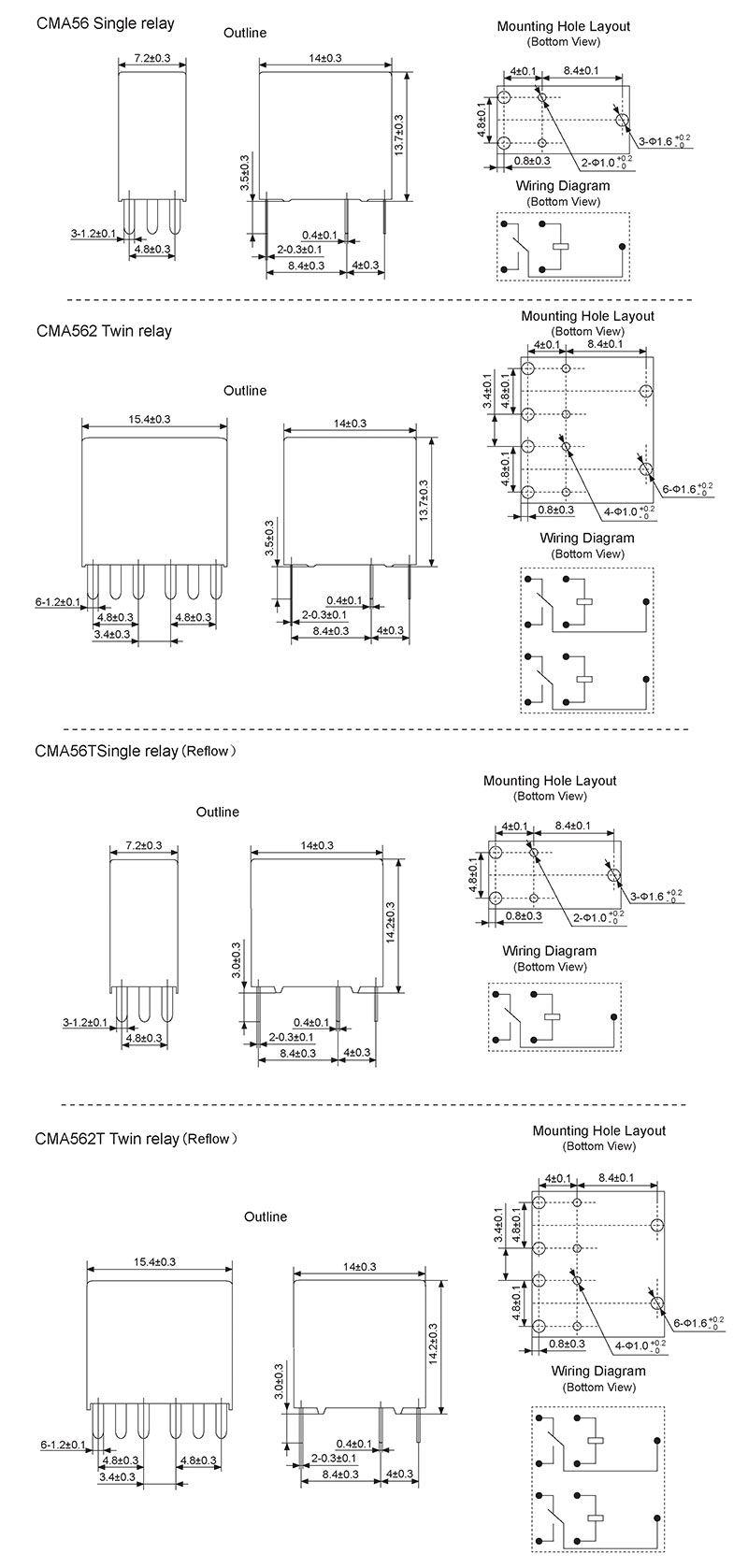

CMA56 dimensions: 14×7.2×13.7mm
CMA562 dimensions: 14×15.4×13.7mm
CMA56T dimensions: 14×7.2×14.2mm
CMA562T dimensions: 14×15.4×14.2mm
25A of Motor Load
Single relay or twin relay

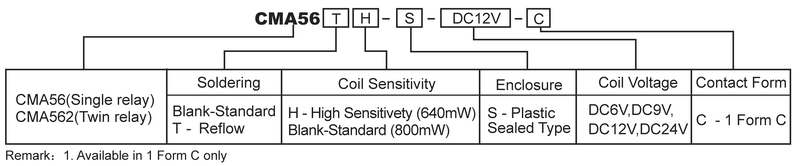

These are miniature automotive relays CMA56/CMA562. CMA56 belongs to single relay, CMA562 belongs to twin relay. It is available in standard soldering or reflow soldering. There are two kinds of coil sensitivity to choose from: high sensitivity (640mW) and standard (800mW). It is only in 1 Form C contact only.
| Contact Data | |
| Contact Form | CMA56:1C CMA562:2×1C |
| Contact Rating | CMA56: Motor:25A(Inrush) 14VDC Resistance:20A |
| Max.Switching Voltage | 16VDC |
| Max.Switching Current | CMA56:30A CMA562:2×30A |
| Max.Switching Power | CMA56:350W CMA562:2×350W |
| Min.Switching Load | 1A 6VDC |
| Coil Data | |
| Coil Voltage | 6～24VDC |
| Coil Power | 0.64W 0.8W |
| General Data | ||
| Dielectric Strength | Open Contacts | 550VAC,1min |
| Coil and Contacts | 550VAC,1min | |
| Electrical Life(ops.) | 100,000(720 ops/h) | |
| Operating Temperature | -40℃ to +105℃(Standard) -40℃ to +125℃(Reflow) |
|
| Terminal Type | PCB | |
| Packaging | |
| Packing Method | CMA56: 200pcs/Box(plastic) CMA562: 100pcs/Box(plastic) |
| Qty/Ctn (Pcs) | CMA56: 2000/Carton CMA562:1000/Carton |
| Carton Size L×W×H(mm) | 452×289×185 |
| Approx N.W. | 8.0 |
| Approx G.W. | 9.2 |
Applications: Center door lock, Mirror adjustment, Turn signal control, Automatic doors and windows, Seat adjustment, Speed limit signal control, Preheating control, BCM
Frequently asked questions:
Q1. How about your company? Do you have factories?
A: Our HKE company is one of the biggest relay manufacturers in China. Our products cover almost all the automotive market in China and have a good reputation. Of course we have our own factories, so our products come directly from the production line.
Q2. Can you send samples?
A: Yes, we can send you samples. More requirements you can contact us by email.
Q3. How long is your lead time?
A: Because of influence of COVID 19, generally the time is over 30 days. The demand for some popular products exceeds the supply, so the lead time maybe longer. But we will arrange our production as soon as possible according to your order.
Q4. How about your after-sales service?
A: We provide perfect after-sales service. If you have any problems of products, you can consult us by email. We will give you best solutions as soon as possible.
