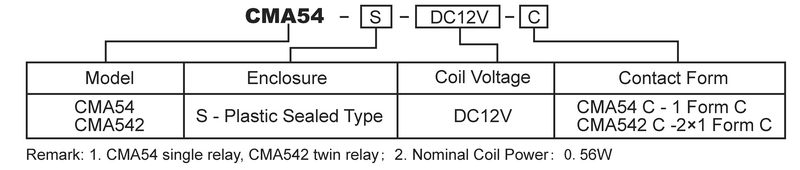

Product Model: CMA54/542
Small and compact
Available in single and twin relay
CMA54 – single relay, CMA542 – twin relay

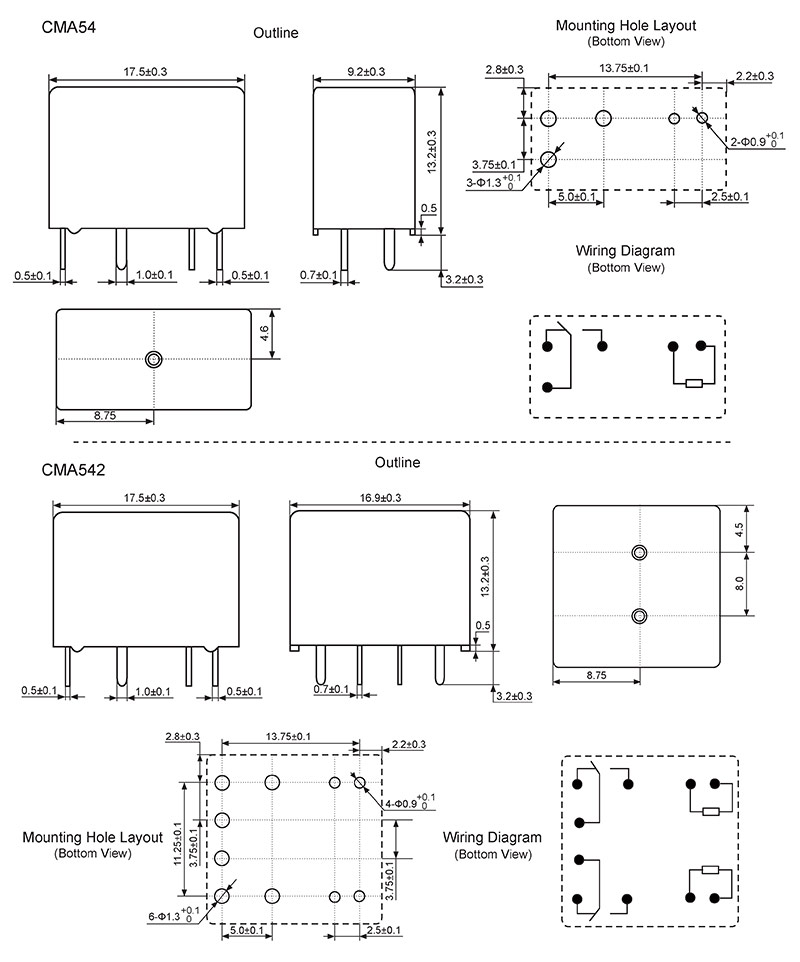

CMA54 dimensions: 17.5×9.2×13.2(mm)
CMA542 dimensions: 17.5×16.9×13.2(mm)
High contact capacity 25A
Low noise operation
Contains no lead and features cadmium-free contacts ensuring environment-friendly use
The product CMA54/CMA542 are small size automotive relays. CMA54 is available in single relay, CMA542 is available in twin relay. CMA54 has 1 Form C contact, CMA542 has 2×1 Form C contact. They have 25A high switching capacity and low noise operation.
| Contact Data | |
| Contact Form | CMA54:1C CMA542:2×1C |
| Contact Rating | CMA54:20A14VDC CMA542:2×20A 14VDC |
| Max.Switching Voltage | 40VDC |
| Max.Switching Current | 25A |
| Max.Switching Power | CMA54:280W CMA542:2×280W |
| Min.Switching Load | – |
| Coil Data | |
| Coil Voltage | 12VDC |
| Coil Power | 0.56W |
| General Data | ||
| Dielectric Strength | Open Contacts | 550VAC,1min |
| Coil and Contacts | 550VAC,1min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -40℃ to +85℃ | |
| Terminal Type | PCB | |
Applications: car alarm, power window, central locking system, seat adjustment control, sunroof motor control, wiper, etc
