Product Model: CMA53/532
Small and compact
Available in single and twin relay
CMA53 – single relay, CMA532 – twin relay

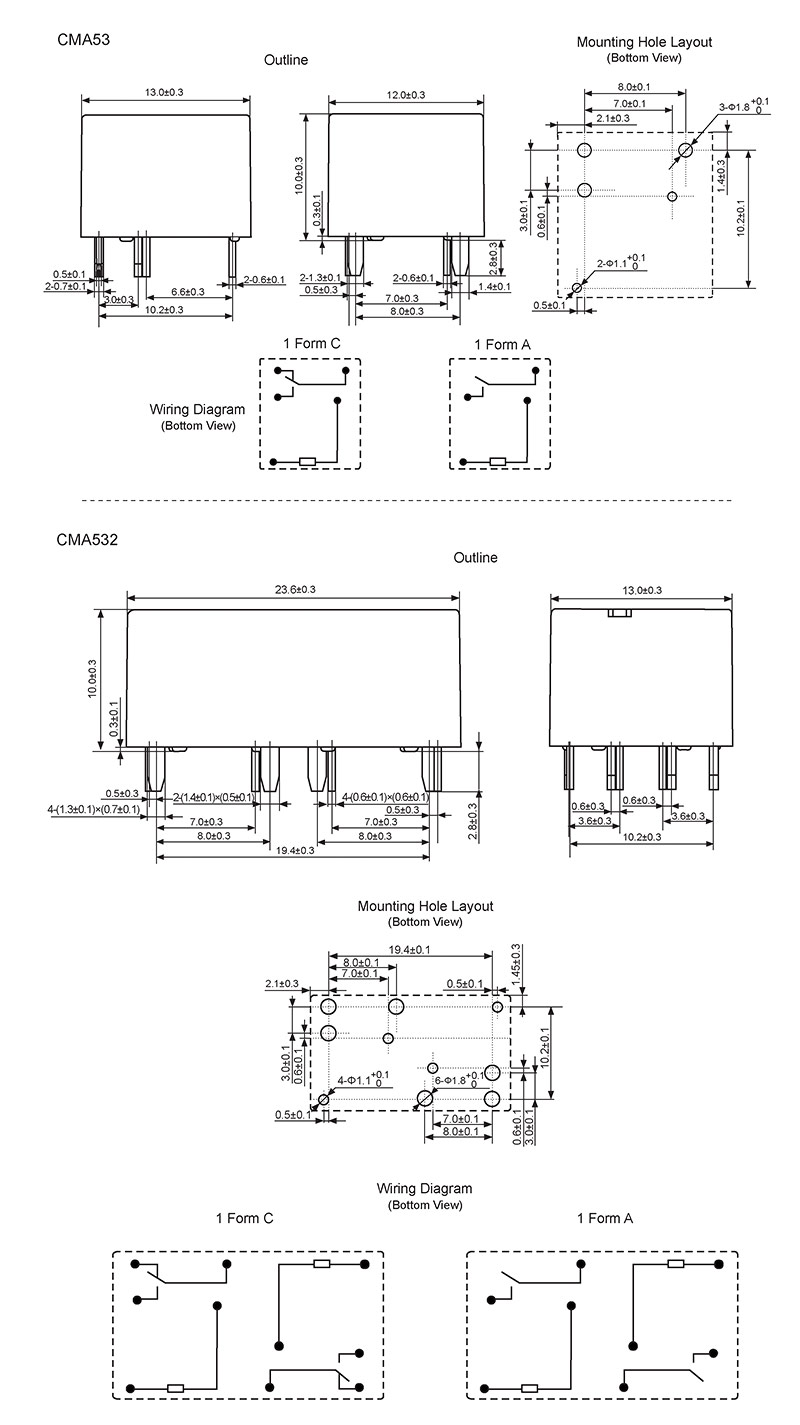

CMA53 Dimensions: 13.0×12.0×10.0(mm)
CMA532 Dimensions: 23.6×13.0×10.0(mm)
High contact capacity 30A
Low noise operation
Contains no lead and features cadmium-free contacts ensuring environment-friendly use
These are our small and compact automotive relays CMA53/CMA532. They are available in single and twin relay. CMA53 is single relay, CMA532 is twin relay. The contact form of CMA53 is 1 Form A and 1 Form C. The contact form of CMA532 is 2×1 Form A, 2×1 Form C. CMA53/CMA532 have 30A high contact capacity and low noise operation.
| Contact Data | |

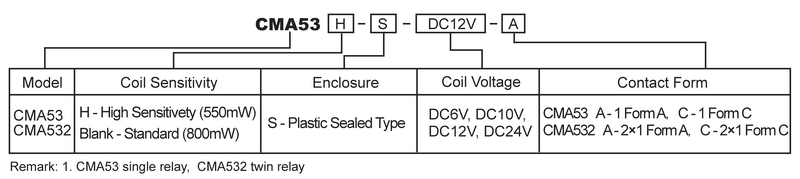

| Contact Form | CMA53：1A, 1C CMA532：2×1A 2×1C |
| Contact Rating | NO/NC:20A/15A 14VDC |
| Max.Switching Voltage | 16VDC |
| Max.Switching Current | 30A |
| Max.Switching Power | 280W |
| Min.Switching Load | – |
| Coil Data | |
| Coil Voltage | 6～24VDC |
| Coil Power | 0.55W 0.8W |
| General Data | ||
| Dielectric Strength | Open Contacts | 550VAC,1min |
| Coil and Contacts | 550VAC,1min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -40℃ to +105℃ | |
| Terminal Type | PCB | |
| Packaging | |
| Packing Method | 40pcs/Tube (CMA53) 20pcs/Tube(CMA532) |
| Qty/Ctn (Pcs) | 2000/Carton(CMA53) 1000/Carton(CMA532) |
| Carton Size L×W×H(mm) | 560×200×116 |
| Approx N.W. | 8.0 |
| Approx G.W. | 10.0 |
Applications: car alarm, power window, central locking system, seat adjustment control, sunroof motor control, wiper, etc
