Product Model: CMA51
Compact microminiature general purpose automotive relay

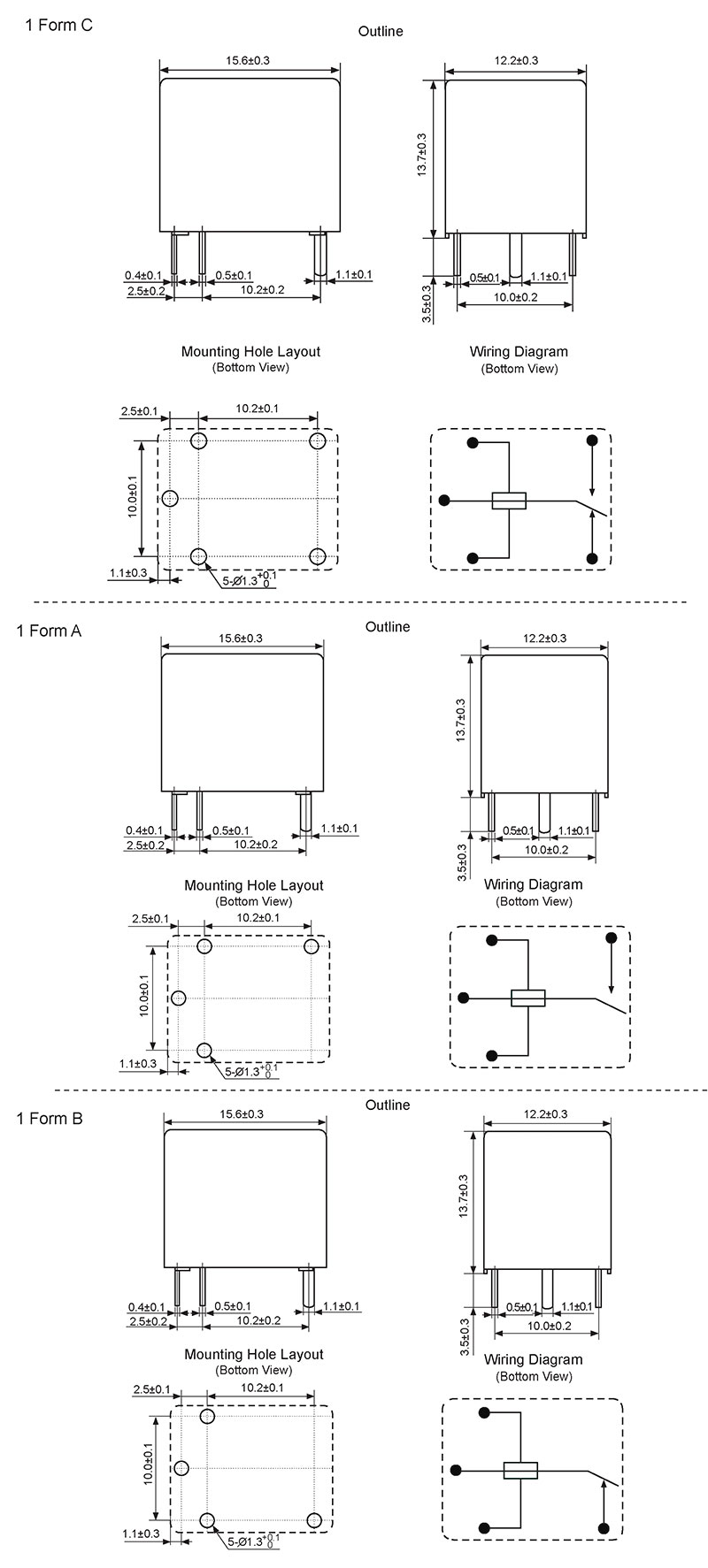

Dimensions: 15.6×12.2×13.7(mm)
High inrush capability: 60A
Contains no lead and features cadmium-free contacts ensuring environment-friendly use

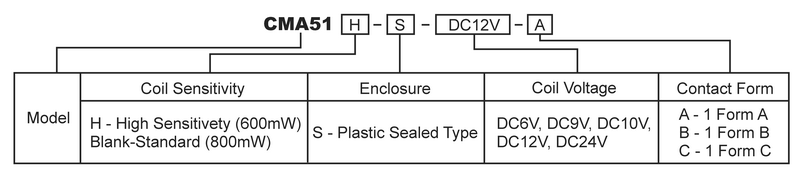

The product CMA51 is our small size microminiature automotive relay. It is available in 1 Form A, 1 Form B, 1 Form C contact. There are two kinds of coil sensitivity, high sensitivity (600mW) and standard (800mW). It has Max 60A inrush current. It is used environmental materials to ensure environment friendly.
| Contact Data | |
| Contact Form | 1A,1B,1C |
| Contact Rating | A: 20A 14VDC Resistive B, C: 15A 14VDC Resistive |
| Max.Switching Voltage | 30VDC |
| Max.Switching Current | 35A |
| Max.Switching Power | 280W |
| Min.Switching Load | – |
| Coil Data | |
| Coil Voltage | 6～24VDC |
| Coil Power | 0.6W 0.8W |
| General Data | ||
| Dielectric Strength | Open Contacts | 550VAC, 1min |
| Coil and Contacts | 550VAC, 1min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -40℃ to +85℃ | |
| Terminal Type | PCB | |
| Packaging | |
| Packing Method | 25pcs/Tube |
| Qty/Ctn (Pcs) | 1000/Carton |
| Carton Size L×W×H(mm) | 371×229×146 |
| Approx N.W. | 5.9 |
| Approx G.W. | 6.7 |
Applications: car alarm, power window, central locking system, seat adjustment control, etc
Frequently asked questions:
Q1. How about your company? Do you have factories?
A: Our HKE company is one of the biggest relay manufacturers in China. Our products cover almost all the automotive market in China and have a good reputation. Of course we have our own factories, so our products come directly from the production line.
Q2. Can you send samples?
A: Yes, we can send you samples. More requirements you can contact us by email.
Q3. How long is your lead time?
A: Because of influence of COVID 19, generally the time is over 30 days. The demand for some popular products exceeds the supply, so the lead time maybe longer. But we will arrange our production as soon as possible according to your order.
Q4. How about your after-sales service?
A: We provide perfect after-sales service. If you have any problems of products, you can consult us by email. We will give you best solutions as soon as possible.
