Product Model: CMA36N
General purpose automotive relay

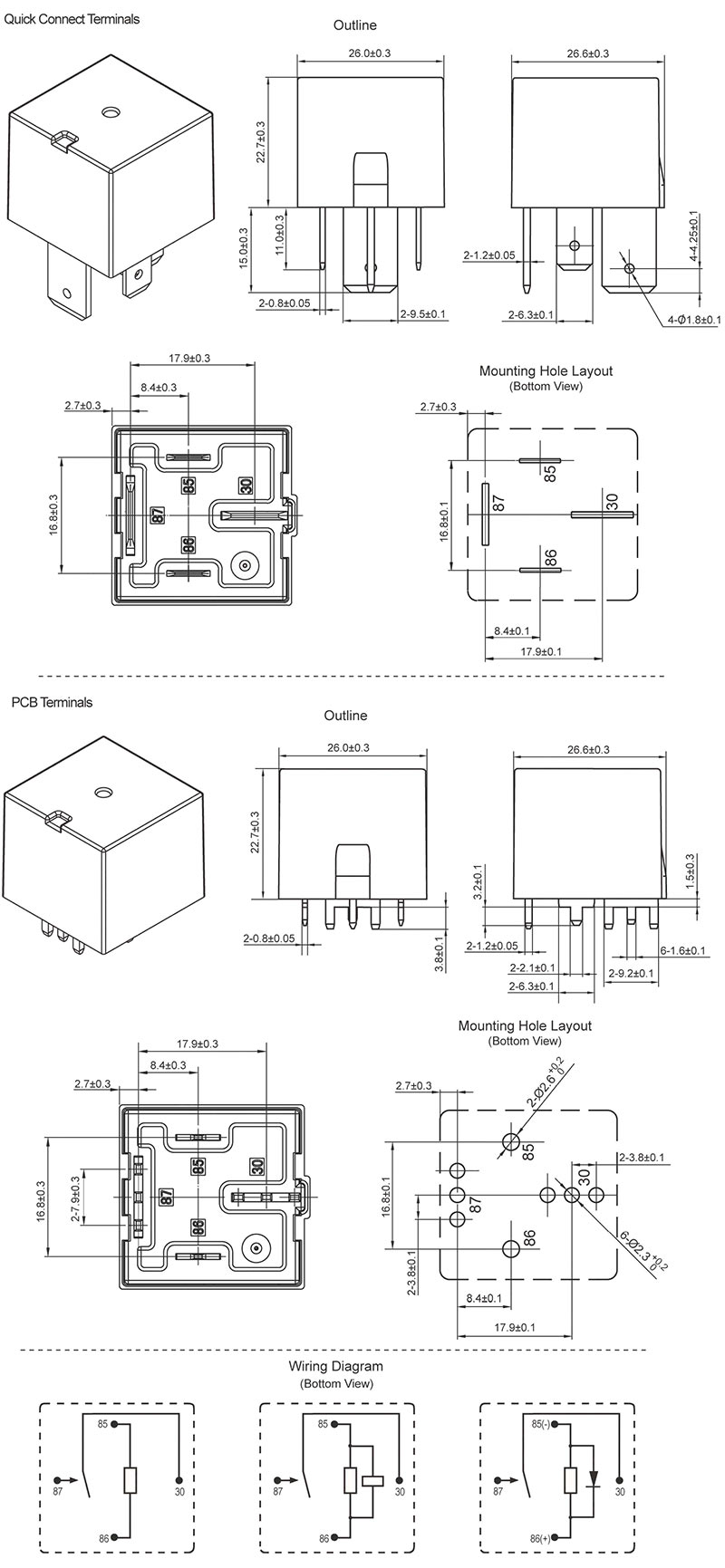

Dimensions: 26.6×26.0×22.7(mm)
70A of switching capability
Contact: 1 Form A
Available for Plastic sealed and unsealed type
Quick Connect Terminals and PCB Terminals
125℃ of operating ambient temperature

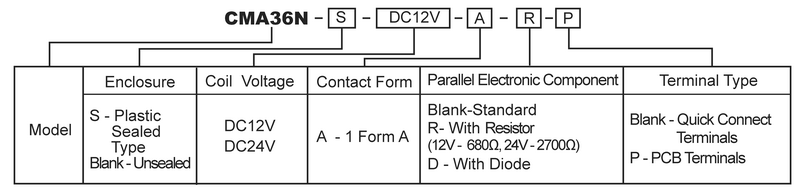

The product CMA36N is our general purpose automotive relay. It is available for plastic sealed and unsealed type. The contact form is 1 Form A only. It can carry with resistor or diode. It is used in quick connect terminals or PCB terminals. CMA36N has 70A switching capacity and 125℃ operating temperature.
| Contact Data | |
| Contact Form | 1A |
| Contact Rating | Resistive： NO:70A/14VDC NO:40A/28VDC Inductive：Make 150A/14VDC, break 50A/14VDC Lamp: Surge 200A/14VDC, break 40A/14VDC |
| Max.Switching Voltage | Refer to ‘Max.switching power curve’ |
| Max.Switching Current | Make(NO,lamp)200A Break(steady state)70A(res,13.5V) |
| Max.Switching Power | 640W |
| Min.Switching Load | – |
| Coil Data | |
| Coil Voltage | 12～24VDC |
| Coil Power | 1.6W 1.8W 2.0W |
| General Data | ||
| Dielectric Strength | Open Contacts | 550VAC,50/60Hz,1 min |
| Coil and Contacts | 550VAC,50/60Hz,1 min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -40℃ to +125℃ | |
| Terminal Type | Quick connect PCB |
|
| Packaging | |
| Packing Method | 50pcs/Box(foam) |
| Qty/Ctn (Pcs) | 250/Carton |
| Carton Size L×W×H(mm) | 356×322×262 |
| Approx N.W. | 8.0 |
| Approx G.W. | 8.9 |
Applications: Headlight control, Rear window defogger, Air-conditioning, Fuel pump control, ABS, Traction control system, Cooling fan control, Battery disconnection device, High-speed fan control, etc
