Product Model: CMA36
Dimensions: 26.0×26.0×22.7(mm)
50A of switching capability
125℃ of operating ambient temperature
SPST and SPDT contact form
Compliance to Rohs ELV Directive
Available for Plastic sealed and unsealed type
This is 50A switching capacity automotive relay CMA36. It is available for plastic sealed and unsealed type. It has two kinds of contact form, SPST and SPDT. There are eight kinds of contacting rating to choose from. It is also used in PCB terminals or quick connect terminals. Besides, CMA36 compliance to RoHS ELV directive.
| Contact Data | |

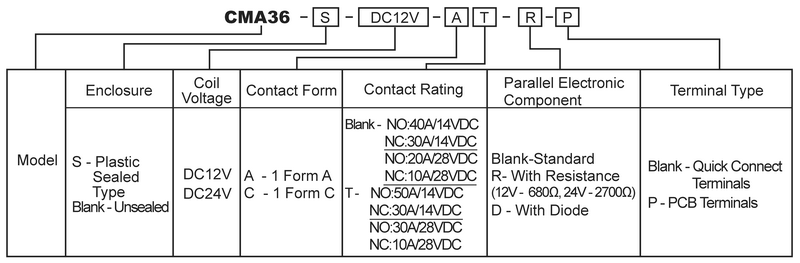

| Contact Form | 1A,1C |
| Contact Rating | Standard: NO:40A/14VDC,NC:30A/14VDC NO:20A/28VDC,NC:10A/28VDCT: NO:50A/14VDC,NC:30A/14VDC NO:30A/28VDC.NC:10A/28VDC |
| Max.Switching Voltage | 28VDC |
| Max.Switching Current | Make:150A(NO,surge) Break:50A(steady-state) |
| Max.Switching Power | 640W |
| Min.Switching Load | – |
| Coil Data | |
| Coil Voltage | 12VDC～24VDC |
| Coil Power | 1.6W 1.8W 2.0W 2.2W |
| General Data | ||
| Dielectric Strength | Open Contacts | 550VAC,50/60Hz,1 min |
| Coil and Contacts | 550VAC,50/60Hz,1 min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -40℃ to +125℃ | |

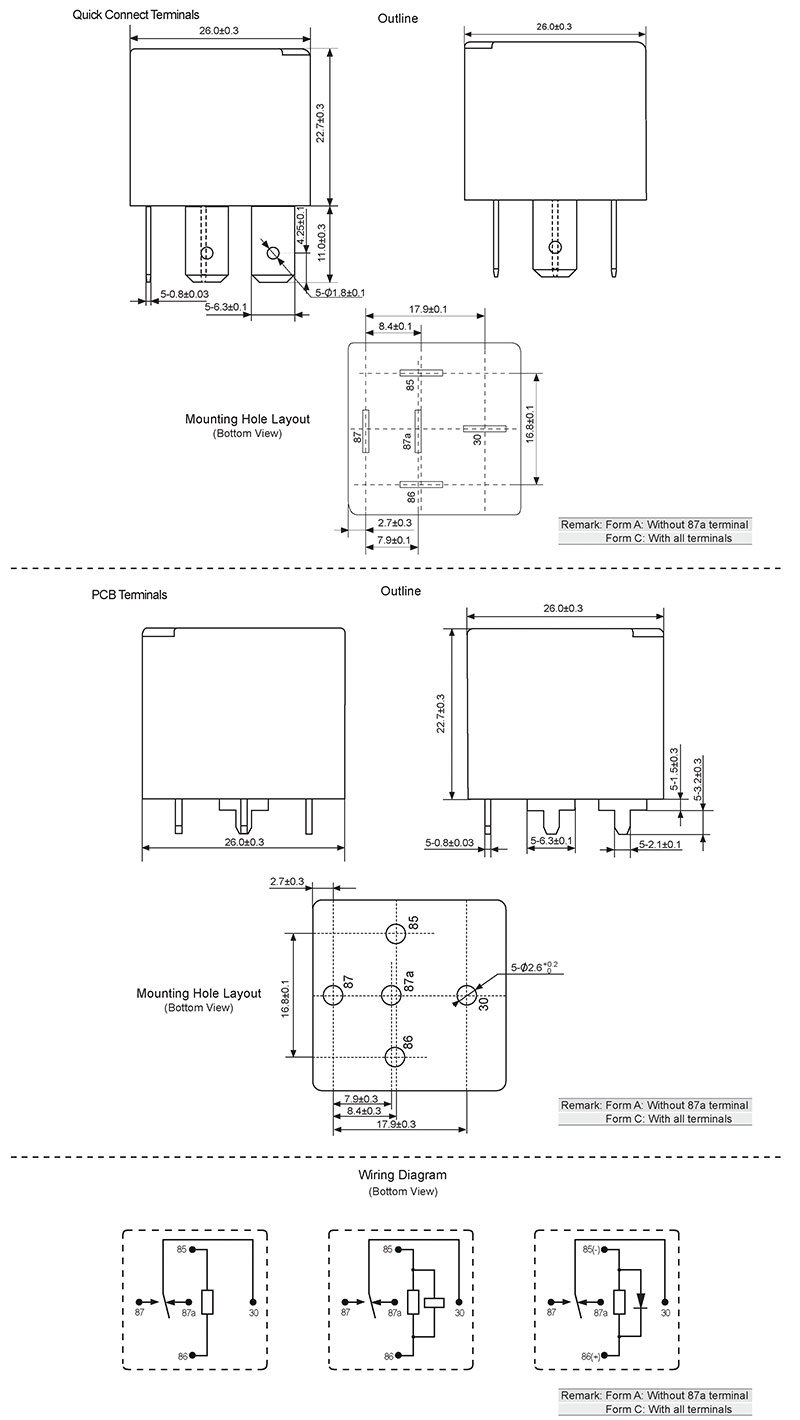

| Terminal Type | Quick connect PCB |
|
| Packaging | |
| Packing Method | 50pcs/Box(paper) |
| Qty/Ctn (Pcs) | 500/Carton |
| Carton Size L×W×H(mm) | 500×430×233 |
| Approx N.W. | 14.2 |
| Approx G.W. | 17.2 |
Applications: Fog lamp and headlight control, Rear window defogger, Air-conditioning, Fuel pump control, Fan control, Start/stop control, etc
