Product Model: CMA35
Heavy duty general purpose automotive relay

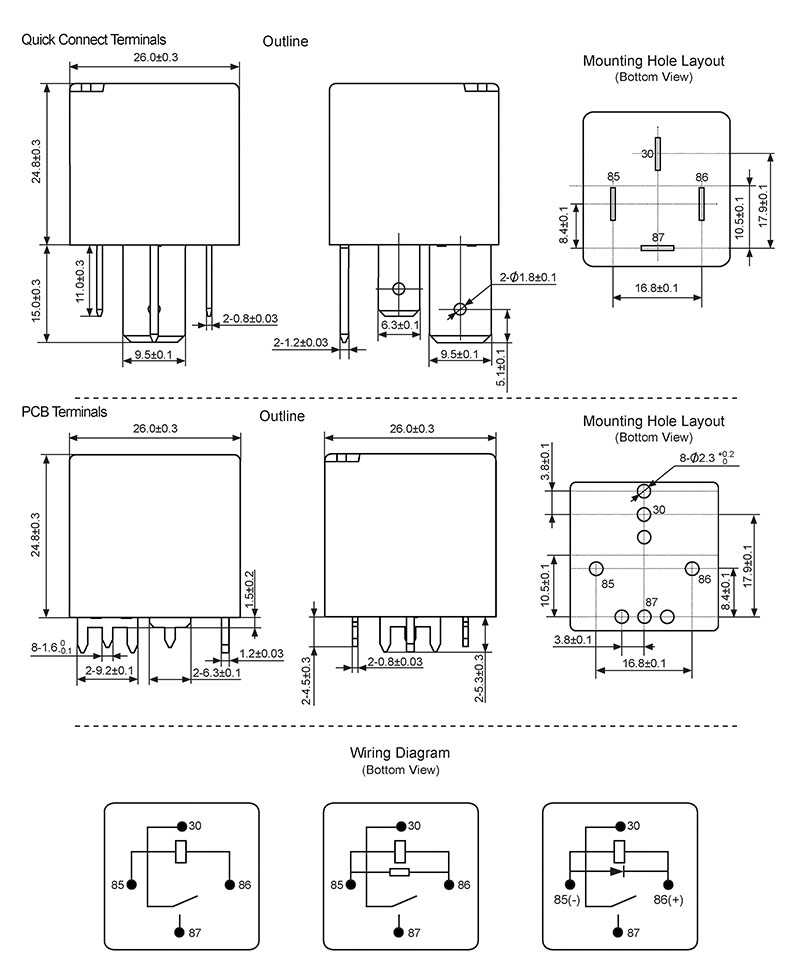

Outline dimensions:26.0×26.0×24.8 (mm)
70A of contact switching capacity
125℃ of working temperature
Normal open contact configuration
Available for Plastic sealed and unsealed type
Quick Connect Terminals and PCB Terminals
This is heavy duty general purpose automotive relay CMA35. It has two kinds of sensitivity, high sensitivity (1600mW) and standard (1800mW). It is available in plastic sealed or unsealed type. The contact form is 1 Form A only. The terminal type is quick connect or PCB terminals. It has Max 70A contact switching capacity and Max 125℃ working temperature.
| Contact Data | |
| Contact Form | 1A |
| Contact Rating | 6V,12VDC: 70A 14VDC 24VDC: 40A 28VDC |
| Max.Switching Voltage | 50VDC |
| Max.Switching Current | 70A |
| Max.Switching Power | 1120W |
| Min.Switching Load | – |
| Coil Data | |
| Coil Voltage | 6～24VDC |
| Coil Power | 1.6W 1.8W |
| General Data | ||
| Dielectric Strength | Open Contacts | 550VAC,1min |
| Coil and Contacts | 550VAC,1min | |
| Electrical Life(ops.) | 100,000 (70A 14VDC,720 cycles/h) 100,000(40A 28VDC,720 cycles/h) |
|
| Operating Temperature | -40℃ to +125℃ | |
| Terminal Type | Quick connect PCB |
|
| Packaging | |
| Packing Method | 50pcs/Box(foam) |
| Qty/Ctn (Pcs) | 250/Carton |
| Carton Size L×W×H(mm) | 356×322×262 |
| Approx N.W. | 8.0 |
| Approx G.W. | 9.5 |
Applications: It is widely used in fan control.
