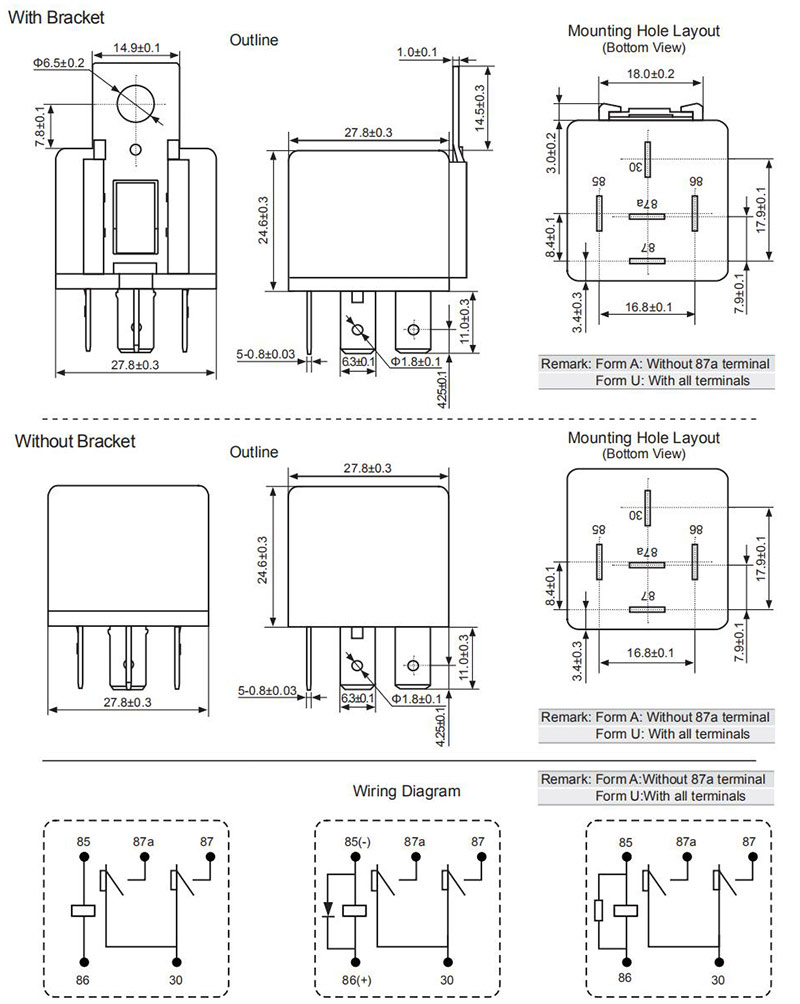

This is our HKE heavy duty general purpose automotive relay CMA32. It has two contact configurations: 1 Form A and 2 Form A. It is available in 2 mounting options, with bracket or without bracket. It can also carry with resistors or diode. The nominal coil power is 1.6W, the nominal coil power with resistor is 1.8W.
| Contact Data | |
| Contact Form | 1A,1U |
| Contact Rating | 12VDC: 30A 14VDC(A) 2×20A 14VDC(U) 24VDC: 10A 28VDC(A) 2×10A 28VDC(U) |
| Max.Switching Voltage | 75VDC |
| Max.Switching Current | 30A |
| Max.Switching Power | 420W |
| Min.Switching Load | – |
| Coil Data | |
| Coil Voltage | 12～24VDC |
| Coil Power | 1.6W, 1.8W |
| General Data | ||
| Dielectric Strength | Open Contacts | 550VAC,1min |
| Coil and Contacts | 550VAC,1min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -40℃ to +85℃ | |
| Terminal Type | Quick connect | |
| Packaging | ||
| Packing Method | 50pcs/Box(paper) | |
| Qty/Ctn (Pcs) | 500/Carton | |
| Carton Size L×W×H(mm) | 536×440×253 | |
| Approx N.W. | 18.0(Bracket Mounting) 17.5(Without Bracket Mounting) |
|
| Approx G.W. | 20.5(Bracket Mounting) 19.1(Without Bracket Mounting) |
|
Applications: Oil Pump Control, Fan Control, Fog light/Headlight Control, A/C Compressor Cluth
Frequently asked questions:
Q1. How about your company? Do you have factories?
A: Our HKE company is one of the biggest relay manufacturers in China. Our products cover almost all the automotive market in China and have a good reputation. Of course we have our own factories, so our products come directly from the production line.
Q2. Can you send samples?
A: Yes, we can send you samples. More requirements you can contact us by email.
Q3. How long is your lead time?
A: Because of influence of COVID 19, generally the time is over 30 days. The demand for some popular products exceeds the supply, so the lead time maybe longer. But we will arrange our production as soon as possible according to your order.
Q4. How about your after-sales service?
A: We provide perfect after-sales service. If you have any problems of products, you can consult us by email. We will give you best solutions as soon as possible.
