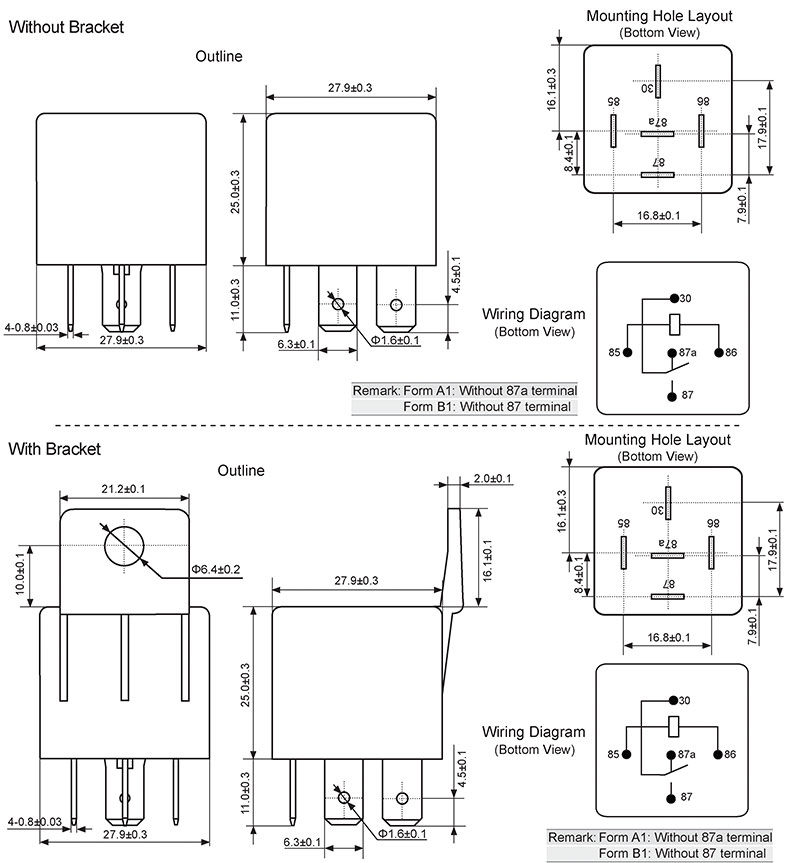

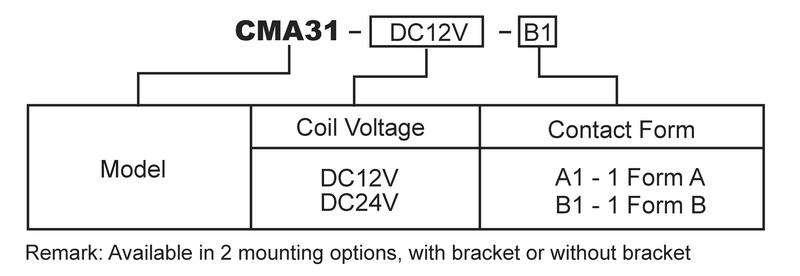

The product CMA31 (A1/B1) is our automotive relay. It has two contact forms: 1 Form A and 1 Form B. It is available in 2 mounting options, with bracket or without bracket. It has 1.6W nominal coil power and the weight is approximately 26g.
| Contact Data | |
| Contact Form | 1A,1B |
| Contact Rating | 12VDC: 40A 14VDC(A1) 30A 14VDC(B1) 24VDC:20A 28VDC(A1) 10A 28VDC(B1) |
| Max.Switching Voltage | 75VDC |
| Max.Switching Current | 40A |
| Max.Switching Power | 420W |
| Min.Switching Load | – |
| Coil Data | |
| Coil Voltage | 12～24VDC |
| Coil Power | 1.6W |
| General Data | ||
| Dielectric Strength | Open Contacts | 550VAC,1min |
| Coil and Contacts | 550VAC,1min | |
| Electrical Life(ops.) | 50,000 | |
| Operating Temperature | -40℃ to +85℃ | |
| Terminal Type | Quick connect | |
| Packaging | |
| Packing Method | 50pcs/Box(paper) |
| Qty/Ctn (Pcs) | 500/Carton |
| Carton Size L×W×H(mm) | 536×440×253 |
| Approx N.W. | 17.0(Bracket Mounting) 16.2(Without Bracket Mounting) |
| Approx G.W. | 19.5(Bracket Mounting) 18.0(Without Bracket Mounting) |
Applications: Oil Pump, Fan Control, Fog Light/Headlight Control, A/C Compressor Cluth
