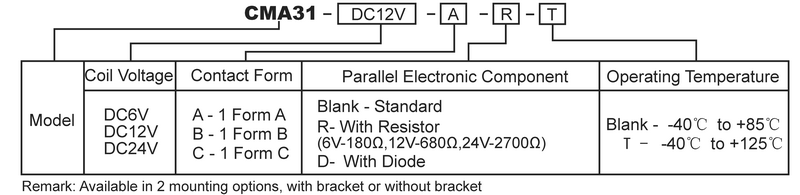

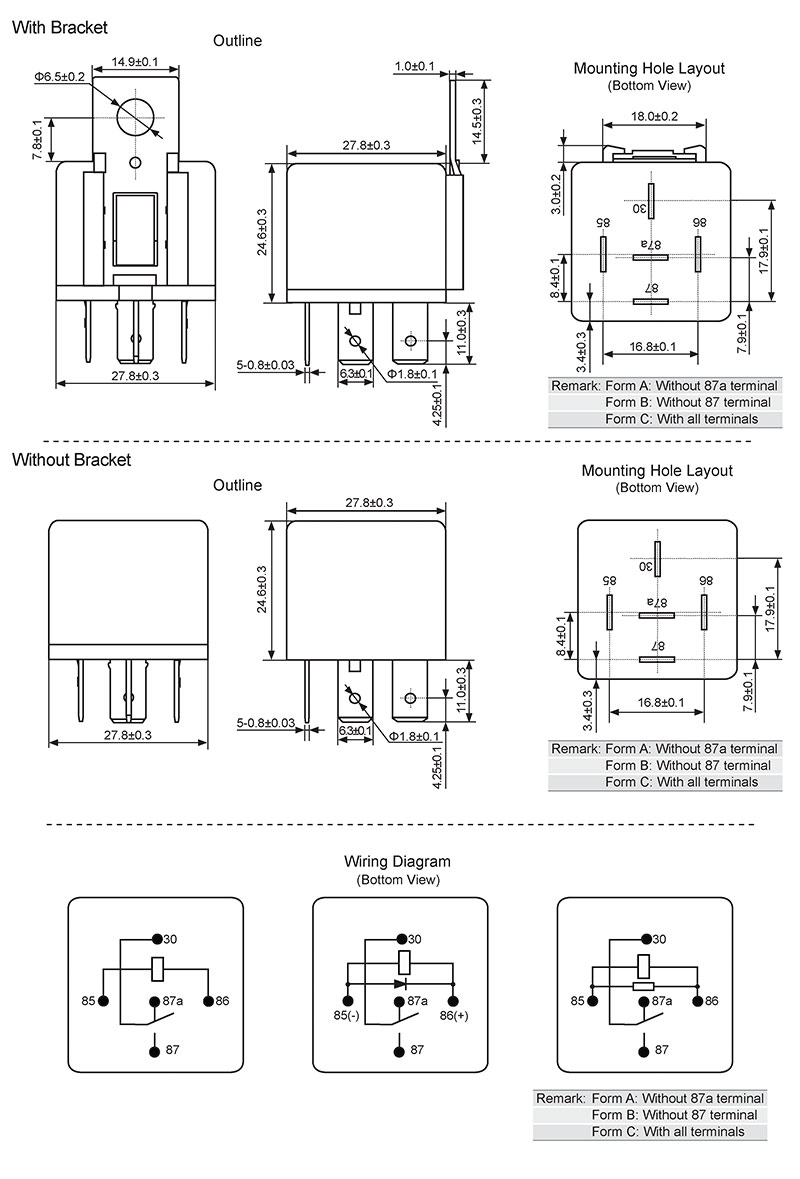

This is our heavy duty general purpose automotive relay CMA31. It is available in 2 mounting options, with bracket or without bracket. There are three kinds of contact forms: 1 Form A, 1 Form B, 1 Form C. It can be paralleled with resistor or diode. It is PCB board designed.
| Contact Data | |
| Contact Form | 1A,1B,1C |
| Contact Rating | 12VDC(Resistive): 40A 14VDC(A) 30A 14VDC(B)30A 14VDC(C) 24VDC(Resistive): 20A 28VDC(A) 10A 28VDC(B) NO/NC: 20A/10A 28VDC(C) |
| Max.Switching Voltage | 75VDC |
| Max.Switching Current | 40A |
| Max.Switching Power | 420W(C) ,560W(A) |
| Min.Switching Load | – |
| Coil Data | |
| Coil Voltage | 6～24VDC |
| Coil Power | 1.6W 1.8W |
| General Data | ||
| Dielectric Strength | Open Contacts | 550VAC,1min |
| Coil and Contacts | 550VAC,1min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -40℃ to +85℃ -40℃ to +125℃(T) |
|
| Terminal Type | Quick Connect | |
| Packaging | |
| Packing Method | 50pcs/Box(paper) |
| Qty/Ctn (Pcs) | 500/Carton |
| Carton Size L×W×H(mm) | 536×440×253 |
| Approx N.W. | 19.0（Bracket Mounting） 17.5（Without Bracket Mounting） |
| Approx G.W. | 21.6（Bracket Mounting） 18.8（Without Bracket Mounting） |
Applications: air compressor, heater, fan motor, blower fan, defogger, etc
