Product Model: CMA2
Miniature automotive relay

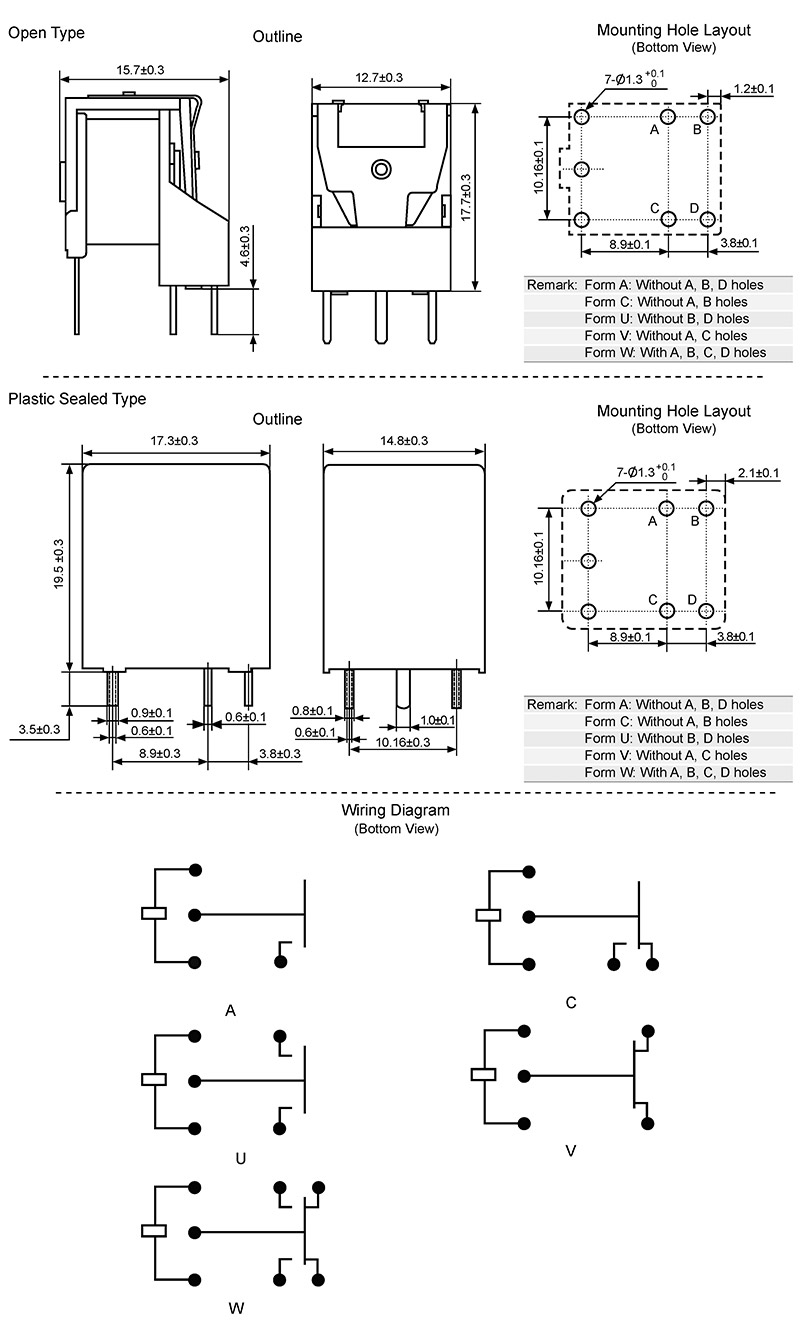

Available in both open frame and plastic sealed package
Sealed: 17.3×14.8×19.5(mm)
Open: 15.7×12.7×17.7(mm)
Numerous contact arrangements
High switching capacity 20A

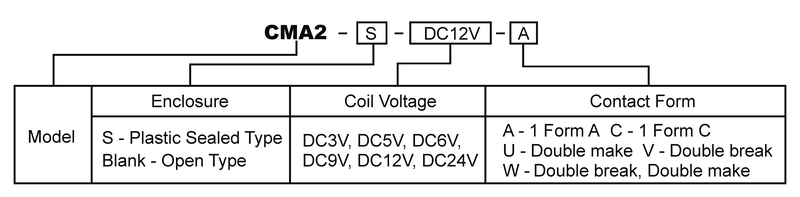

The product CMA2 is a miniature automotive relay. It is available in both open frame and plastic sealed package. It has many contact forms: 1 Form A, 1 Form C, double make, double break, double break-double make. The highest switching capacity is 20A and the nominal coil power reached 1.1W.
| Contact Data | |
| Contact Form | 1A,1C,1U,1V,1W |
| Contact Rating | A:15A 14VDC C:NO/NC:15A/10A 14VDC W:NO/NC:2×7A/2×5A 14VDC |
| Max.Switching Voltage | 75VDC |
| Max.Switching Current | 20A |
| Max.Switching Power | 280W |
| Min.Switching Load | – |
| Coil Data | |
| Coil Voltage | 3～24VDC |
| Coil Power | 1.1W |
| General Data | ||
| Dielectric Strength | Open Contacts | 550VAC,1min |
| Coil and Contacts | 1,000VAC,1min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -40℃ to +85℃ | |
| Terminal Type | PCB | |
| Packaging | ||
| Packing Method | 25pcs/Tube | |
| Qty/Ctn (Pcs) | 1000/Carton | |
| Carton Size L×W×H(mm) | 444×243×172 | |
| Approx N.W. | 9.5(Plastic Sealed Type) 8.0(Open Type) |
|
| Approx G.W. | 11.0(Plastic Sealed Type) 9.7(Open Type) |
|
Applications: It is widely used in flash light, control instruments, window motor control, low temperature start, electronic positioning instruments, center door lock, motor control, etc.
