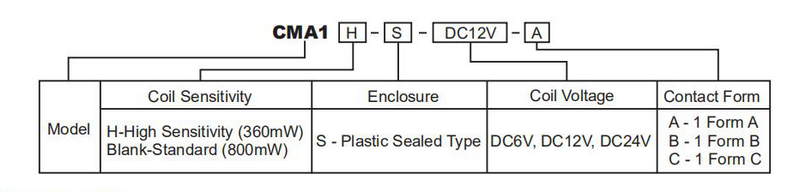

This is our miniature automotive relay CMA1. It is available in 3 contact configurations: 1 Form A, 1 Form B, 1 Form C. There are two kinds of coil sensitivity: high sensitivity (360mW) and standard (800mW). The Max. Switching capacity is 20A. NO type contact current is 20A, NC type contact current is 15A.
Contact Data | |

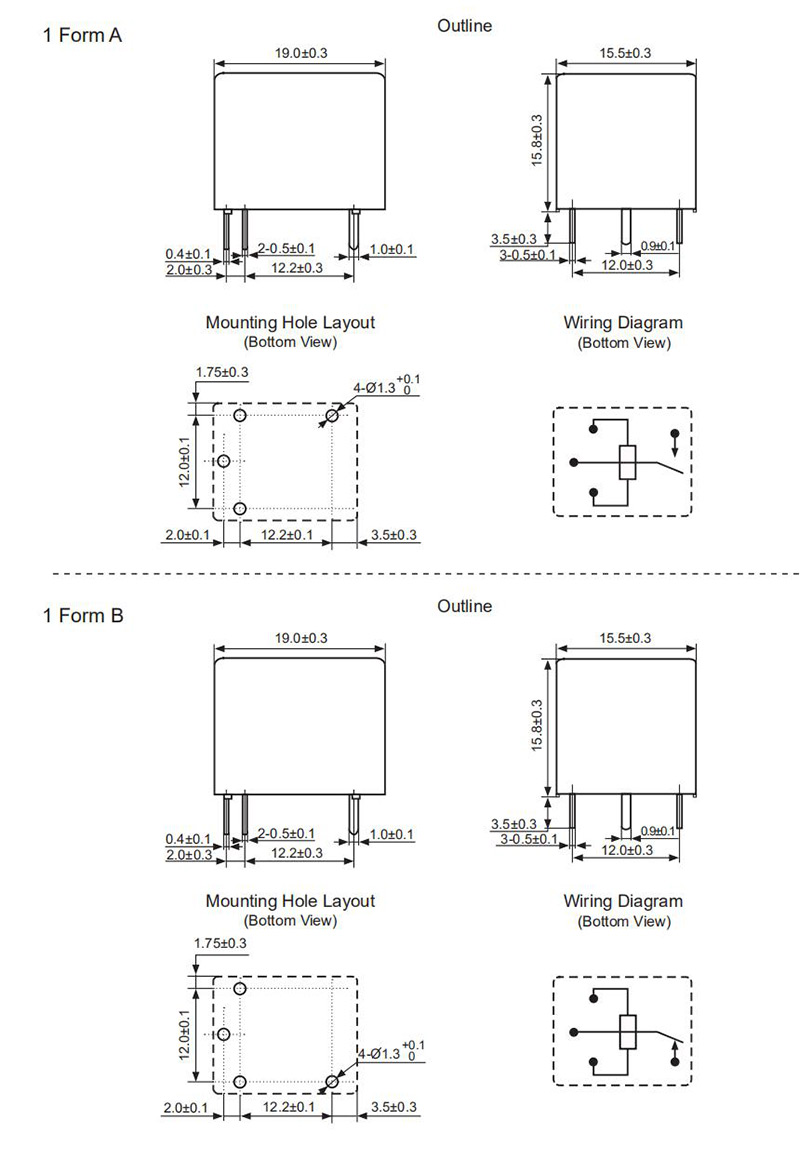

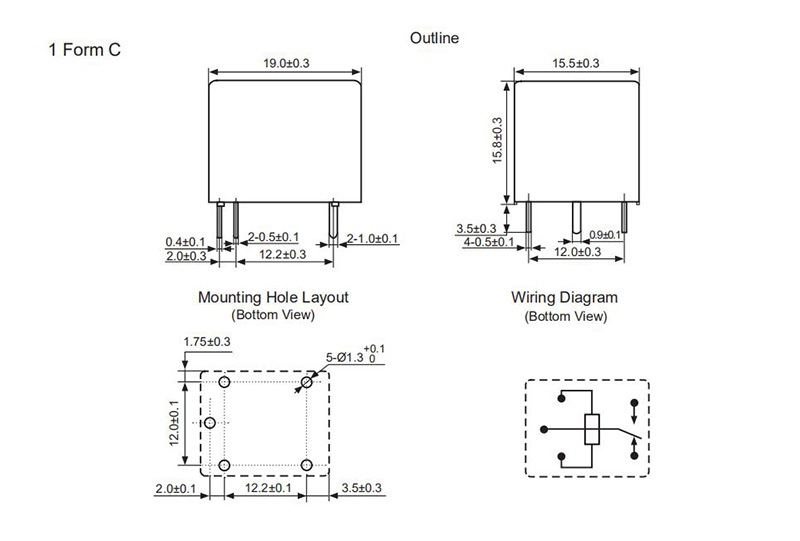

Contact Form | 1A, 1B, 1C |
Contact Rating | 15A 14VDC (B,C)
20A 14VDC (A) |
Max.Switching Voltage | 75VDC |
Max.Switching Current | 20A |
Max.Switching Power | 280W |
Min.Switching Load | – |
Coil Data | |
Coil Voltage | 6~24VDC |
Coil Power | 0.8W, 0.36W |
General Data | ||
Dielectric Strength | Open Contacts | 750VAC,1min |
Coil and Contacts | 1,000VAC,1min | |
Electrical Life(ops.) | 100,000 | |
Operating Temperature | -40℃ to +85℃ | |
Terminal Type | PCB |
Packaging | |
Packing Method | 25pcs/Tube |
Qty/Ctn (Pcs) | 1000/Carton |
Carton Size L×W×H(mm) | 456×266×161 |
Approx N.W. | 8.2 |
Approx G.W. | 8.7 |
Applications: It is widely used in flash light, control instruments, window motor control, low temperature start, electronic positioning instruments, center door lock, motor control, etc.
