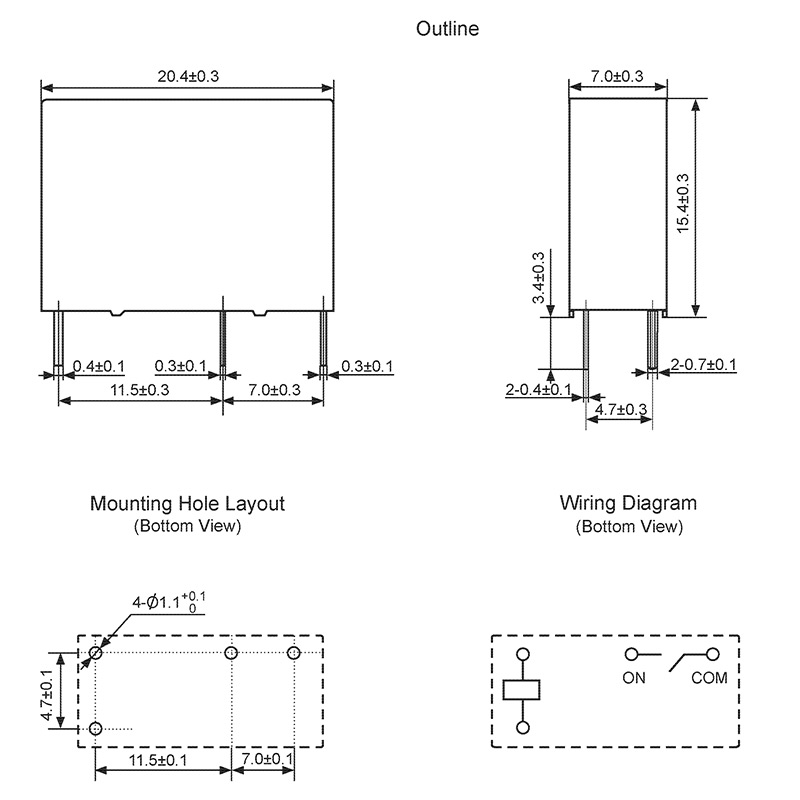

This is our HKE microminiature power relay AC5N. This product bears a striking resemblance to AC5. They just have little different in wiring diagram and mounting hole layout. It has 200mW high sensitivity and high mounting density. It is available in 1 Form A contact only. It has passed UL E164730, VDE 40024200 and CQC 09002030809 safety standards.
| Contact Data | |
| Contact Form | 1A |
| Contact Rating | 5A 250VAC |
| Max.Switching Voltage | 250VAC/30VDC |
| Max.Switching Current | 5A |
| Max.Switching Power | 1,250VA,150W |
| Min.Switching Load | 5VDC,100mA |
| Coil Data | |
| Coil Voltage | 5～24VDC |
| Coil Power | 200mW |
| General Data | ||
| Dielectric Strength | Open Contacts | 750VAC,1min |
| Coil and Contacts | 4,000VAC,1min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -40℃ to +85℃ | |
| Terminal Type | PCB | |
| Packaging | |
| Packing Method | 100pcs/Box(paper) |
| Qty/Ctn (Pcs) | 2000/Carton |
| Carton Size L×W×H(mm) | 345×289×151 |
| Approx N.W. | 6.0 |
| Approx G.W. | 7.3 |
Applications: The sound field.
Frequently asked questions:
Q1. How about your company? Do you have factories?
A: Our HKE company is one of the biggest relay manufacturers in China. Our products cover almost all the automotive market in China and have a good reputation. Of course we have our own factories, so our products come directly from the production line.
Q2. Can you send samples?
A: Yes, we can send you samples. More requirements you can contact us by email.
Q3. How long is your lead time?
A: Because of influence of COVID 19, generally the time is over 30 days. The demand for some popular products exceeds the supply, so the lead time maybe longer. But we will arrange our production as soon as possible according to your order.
Q4. How about your after-sales service?
A: We provide perfect after-sales service. If you have any problems of products, you can consult us by email. We will give you best solutions as soon as possible.
