Product Model: 4133W
Miniature heavy duty general purpose automotive relay

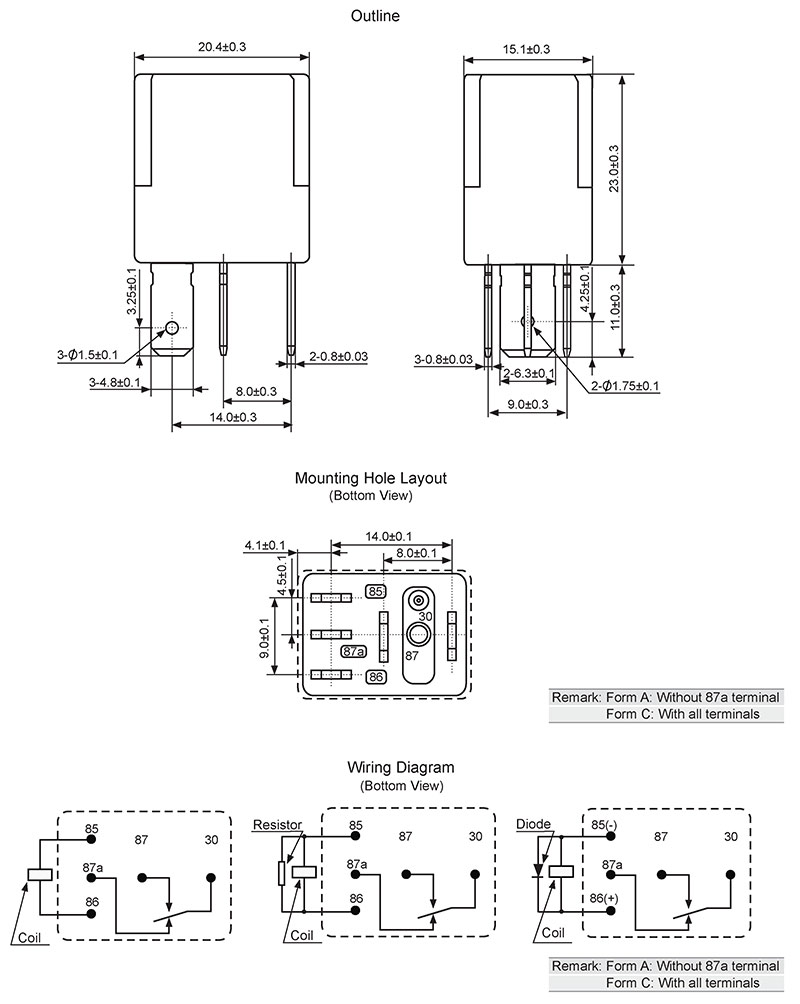

Dimensions: 20.4×15.1×23.0(mm)
Switching capacity 30A
1 Form A and C contact configurations
Operating ambient temperature: 125℃
The product 4133W is our miniature heavy duty general purpose automotive relay. This product is very similar with 4133. But 4133W has 30A Max. Switching capacity. It also can be carried with resistor or diode. The weight is little lighter, approximately 16.0g.
| Contact Data | |
| Contact Form | 1A,1C |
| Contact Rating | 12VDC： NO:30A 14VDC NC:20A 14VDC24 |
| Max.Switching Voltage | 28VDC |
| Max.Switching Current | 30A |
| Max.Switching Power | 490W(12V) 420W(24V) |
| Min.Switching Load | – |
| Coil Data | |
| Coil Voltage | 12～24VDC |
| Coil Power | 1.5W(12V) 1.8W(24V) 1.7W(12V) |
| General Data | ||
| Dielectric Strength | Open Contacts | 550VAC,1min |
| Coil and Contacts | 550VAC,1min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -40℃ to +125℃ | |
| Terminal Type | Quick connect | |
| Packaging | |
| Packing Method | 100pcs/Box(foam) |
| Qty/Ctn (Pcs) | 1000/Carton |
| Carton Size L×W×H(mm) | 396×322×268 |
| Approx N.W. | 16.4 |
| Approx G.W. | 17.5 |
Applications: air compressor, heater, fan motor, blower fan, defogger, etc
Frequently asked questions:
Q1. How about your company? Do you have factories?
A: Our HKE company is one of the biggest relay manufacturers in China. Our products cover almost all the automotive market in China and have a good reputation. Of course we have our own factories, so our products come directly from the production line.
Q2. Can you send samples?
A: Yes, we can send you samples. More requirements you can contact us by email.
Q3. How long is your lead time?
A: Because of influence of COVID 19, generally the time is over 30 days. The demand for some popular products exceeds the supply, so the lead time maybe longer. But we will arrange our production as soon as possible according to your order.
Q4. How about your after-sales service?
A: We provide perfect after-sales service. If you have any problems of products, you can consult us by email. We will give you best solutions as soon as possible.
