Product Model: 4133
Miniature heavy duty general purpose
automotive relay

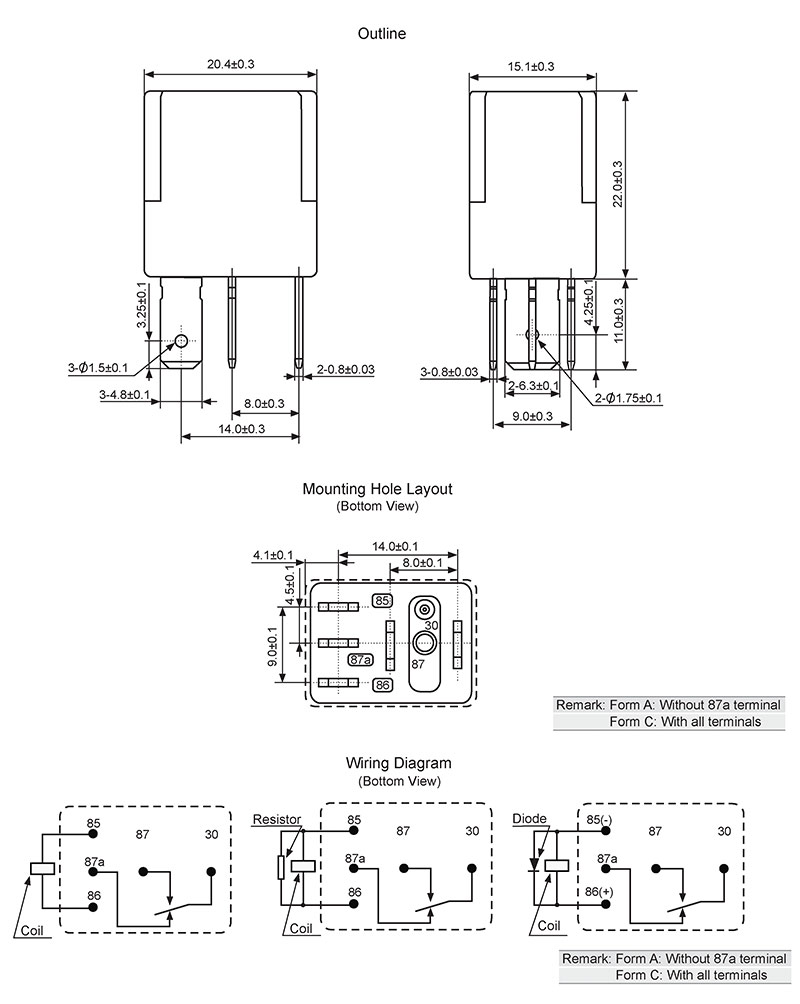

Dimensions: 20.4×15.1×22.0(mm)
Switching capacity 35A
1 Form A and C contact configurations
Operating ambient temperature: 125℃
This is our very popular miniature heavy duty general purpose automotive relay 4133. It has two kinds of coil sensitivity: high sensitivity and standard. It is available in 1 Form A and 1 Form C contact configurations. The operating ambient temperature can come to 125℃. The Max. Switching current is 35A.
| Contact Data | |
| Contact Form | 1A,1C |
| Contact Rating | 12VDC： NO:35A 14VDC NC:20A 14VDC24V |
| Max.Switching Voltage | 28VDC |
| Max.Switching Current | 35A |
| Max.Switching Power | 490W(12V) 420W(24V) |
| Min.Switching Load | – |
| Coil Data | |
| Coil Voltage | 12～24VDC |
| Coil Power | 1.5W(12V) 1.8W(24V) 1.7W(12V) 2.0 |
| General Data | ||
| Dielectric Strength | Open Contacts | 550VAC,1min |
| Coil and Contacts | 550VAC,1min | |
| Electrical Life(ops.) | 100,000 | |
| Operating Temperature | -40℃ to +125℃ | |
| Terminal Type | Quick connect | |
| Packaging | |
| Packing Method | 100pcs/Box(foam) |
| Qty/Ctn (Pcs) | 1000/Carton |
| Carton Size L×W×H(mm) | 396×322×268 |
| Approx N.W. | 16.5 |
| Approx G.W. | 17.6 |
Applications: air compressor, heater, fan motor, blower fan, defogger, automotive air conditions, interlock devices, etc
Frequently asked questions:
Q1. How about your company? Do you have factories?
A: Our HKE company is one of the biggest relay manufacturers in China. Our products cover almost all the automotive market in China and have a good reputation. Of course we have our own factories, so our products come directly from the production line.
Q2. Can you send samples?
A: Yes, we can send you samples. More requirements you can contact us by email.
Q3. How long is your lead time?
A: Because of influence of COVID 19, generally the time is over 30 days. The demand for some popular products exceeds the supply, so the lead time maybe longer. But we will arrange our production as soon as possible according to your order.
Q4. How about your after-sales service?
A: We provide perfect after-sales service. If you have any problems of products, you can consult us by email. We will give you best solutions as soon as possible.
